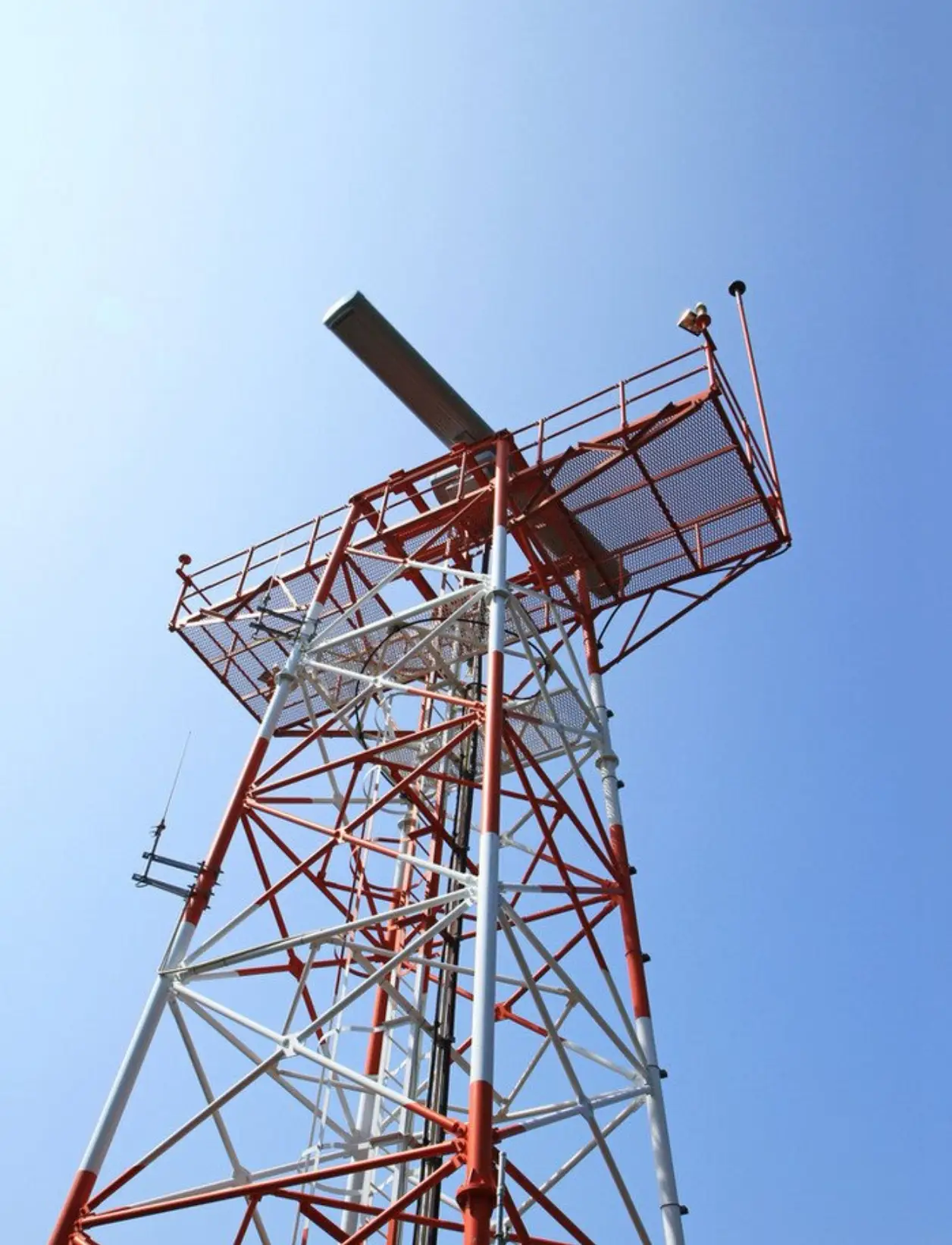

The radar tower is a tall steel structure used to support radar antennas and related equipment, mainly used in meteorological observation, air traffic control, air defense warning, port monitoring and other fields. Radar towers have much stricter requirements on structural stiffness, top displacement and vibration control than ordinary steel towers to ensure precise pointing and stable operation of radar antennas.
Yutai radar towers adopt self-supporting lattice structure, designed in compliance with ANSI/TIA-222-F/G/H, BS 8100, EN 1993-3-1 and other international standards. The tower body is made of Q235B/Q355B high-quality steel, hot-dip galvanized anti-corrosion, design service life over 50 years. The tower top is equipped with a horizontally reinforced radar antenna platform with high rigidity and small deformation, meeting the strict stability requirements of radar equipment.
Product height ranges from 15m to 50m, customizable according to terrain and scan coverage requirements. Tower foundations use deep concrete bases or pilings to ensure stability in soft soil or seismic zones. The tower can be equipped with internal ladders, feeder cable trays, maintenance platforms, etc., facilitating equipment installation and maintenance. Widely used in meteorological departments, civil airports, military airports, port and maritime affairs, etc.
| Parameter | Value |
|---|---|
| Structure Type | Self-supporting lattice tower / 4-column angle steel tower |
| Common Heights | 15m, 20m, 25m, 30m, 40m, 50m (Customizable) |
| Main Material | Q235B / Q355B High-quality structural steel |
| Design Standards | ANSI/TIA-222-F/G/H, BS 8100, EN 1993-3-1 |
| Design Wind Speed | 40-56m/s (Grade 14+) |
| Seismic Rating | Intensity 8 |
| Top Torsion Angle | ≤ 0.5° (for sensitive radar) |
| Top Displacement | ≤ H/200 (H = tower height) |
| Platform Load | 500-5000kg (By radar model) |
| Radome Diameter | 3m - 8.5m (By radar model) |
| Foundation Type | Deep concrete base / Piling |
| Ladder Type | Internal ladder + safety cage |
| Anti-corrosion | Hot-dip galvanizing (ISO 1461) |
| Design Life | ≥ 50 years |
