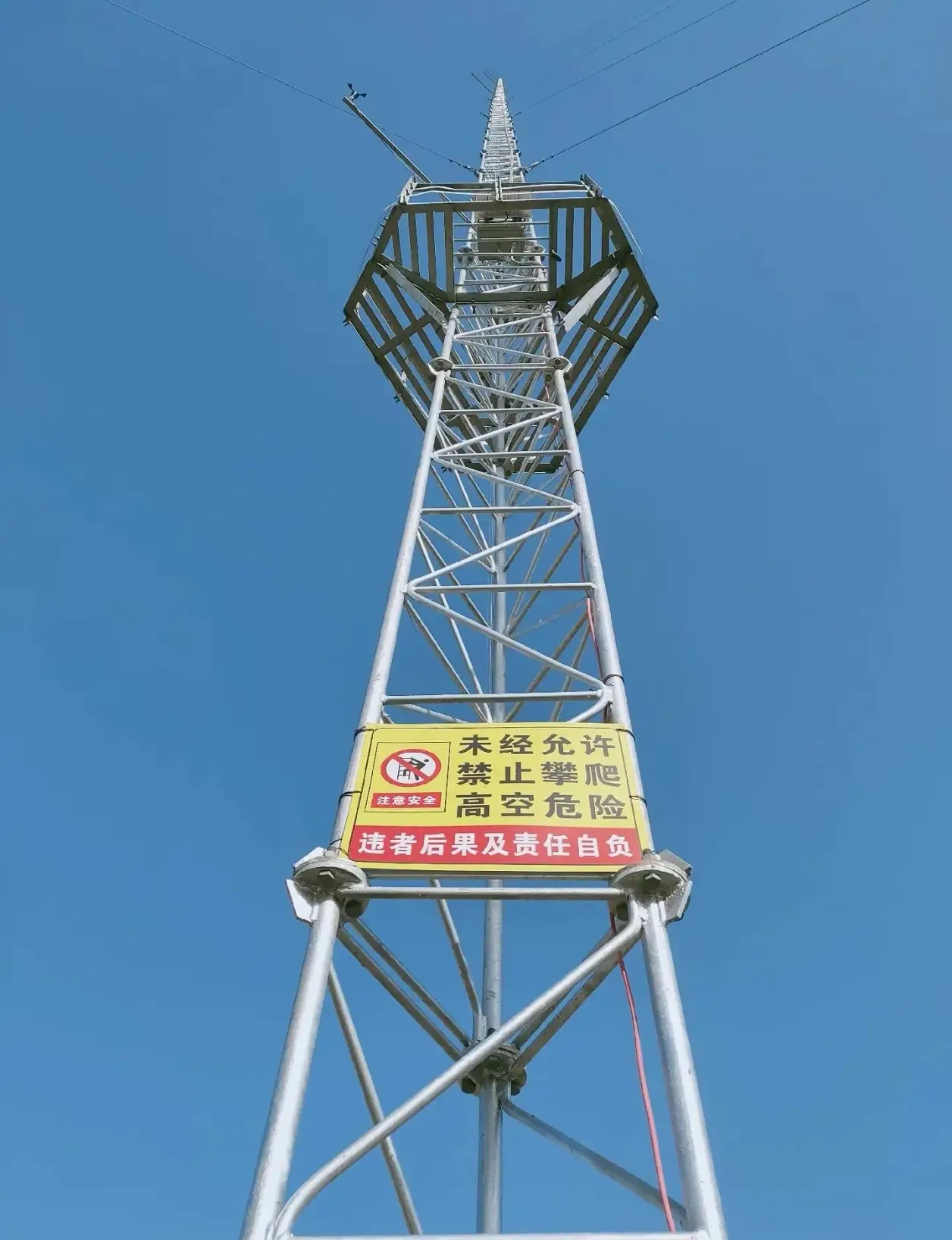

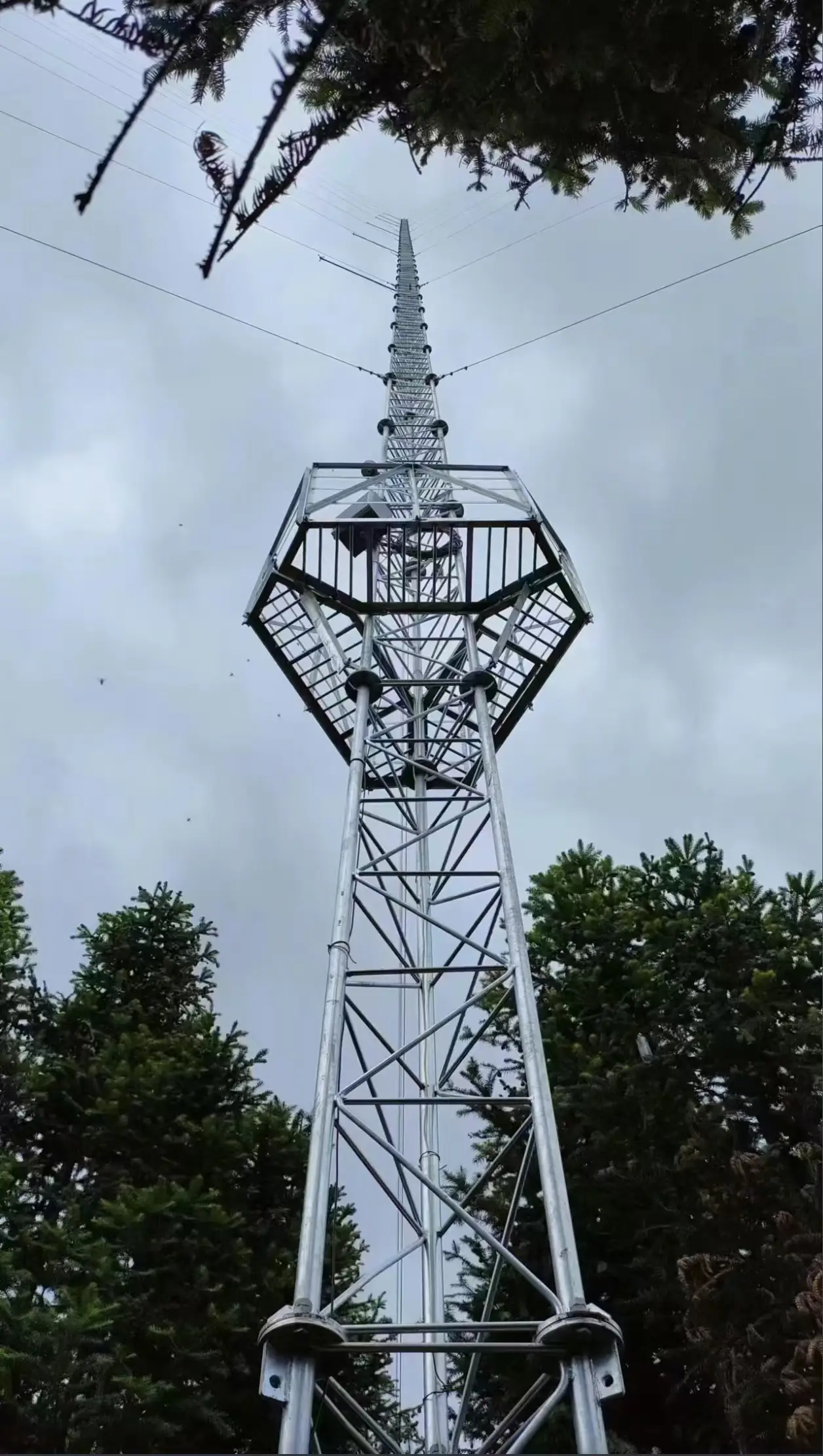

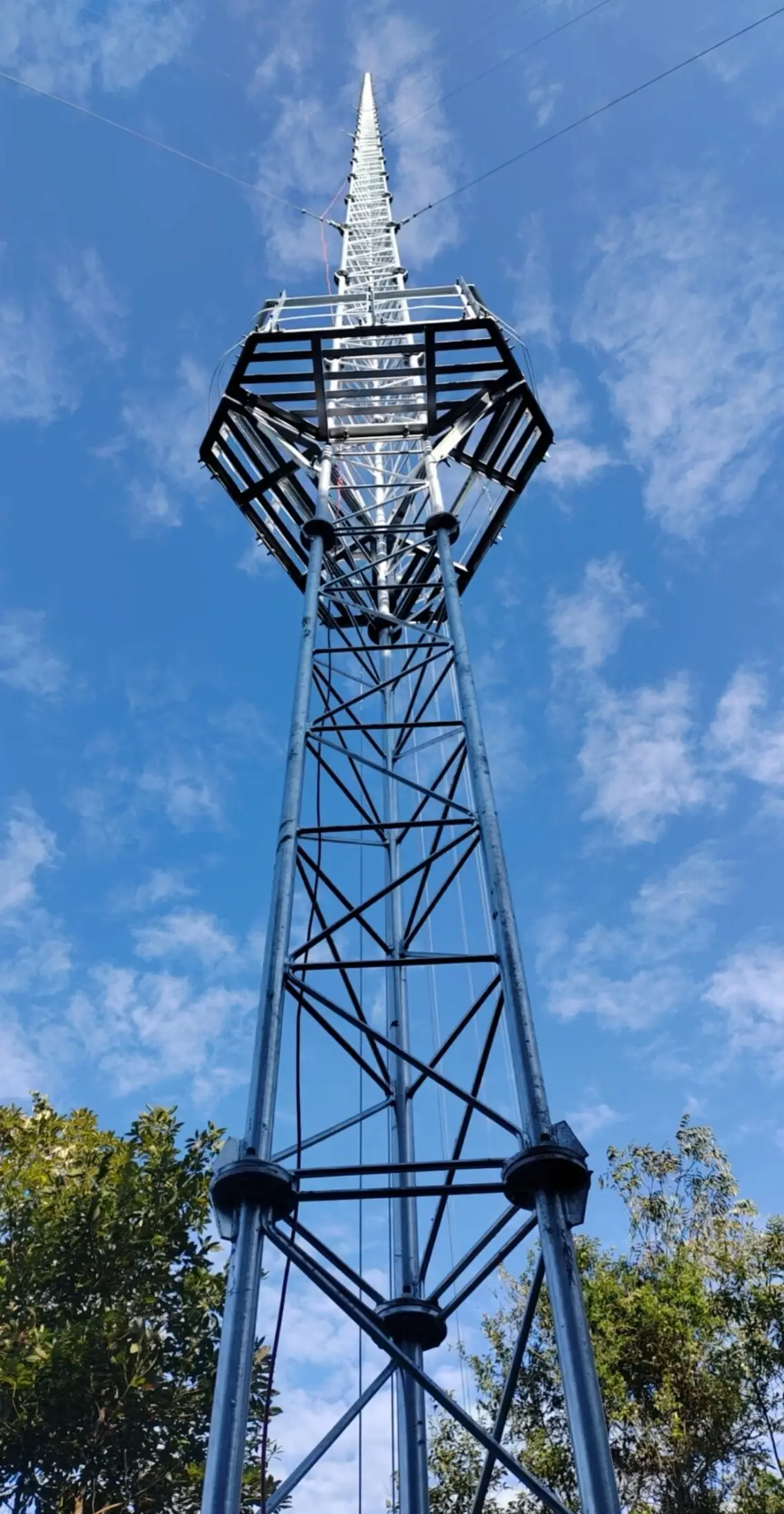

The wind measurement tower, also known as wind speed tower, meteorological tower or wind energy observation tower, is a tall steel structure used for wind energy resource measurement and meteorological observation. It is important infrastructure for wind energy resource assessment in the early stage of wind farm construction.

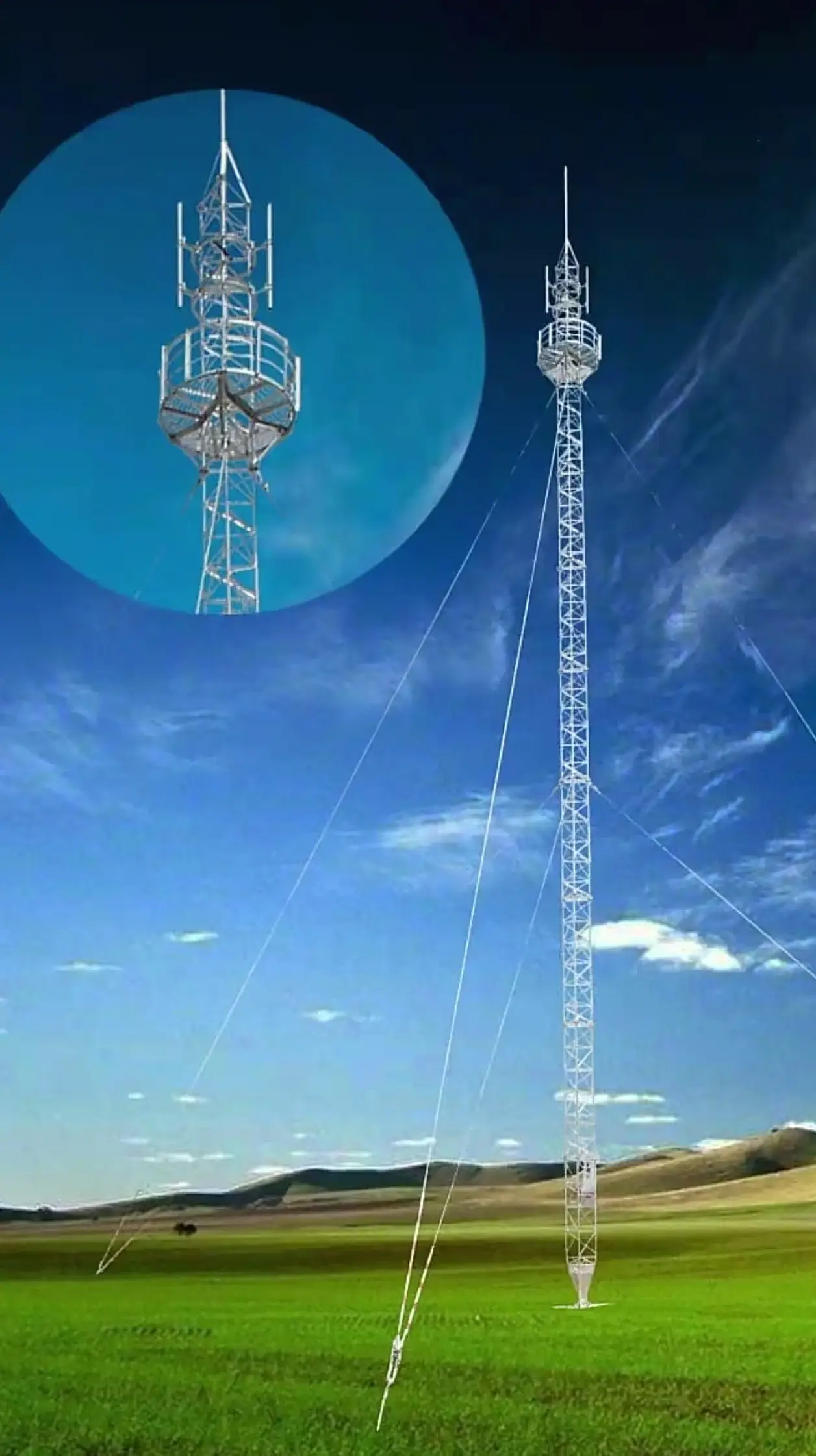

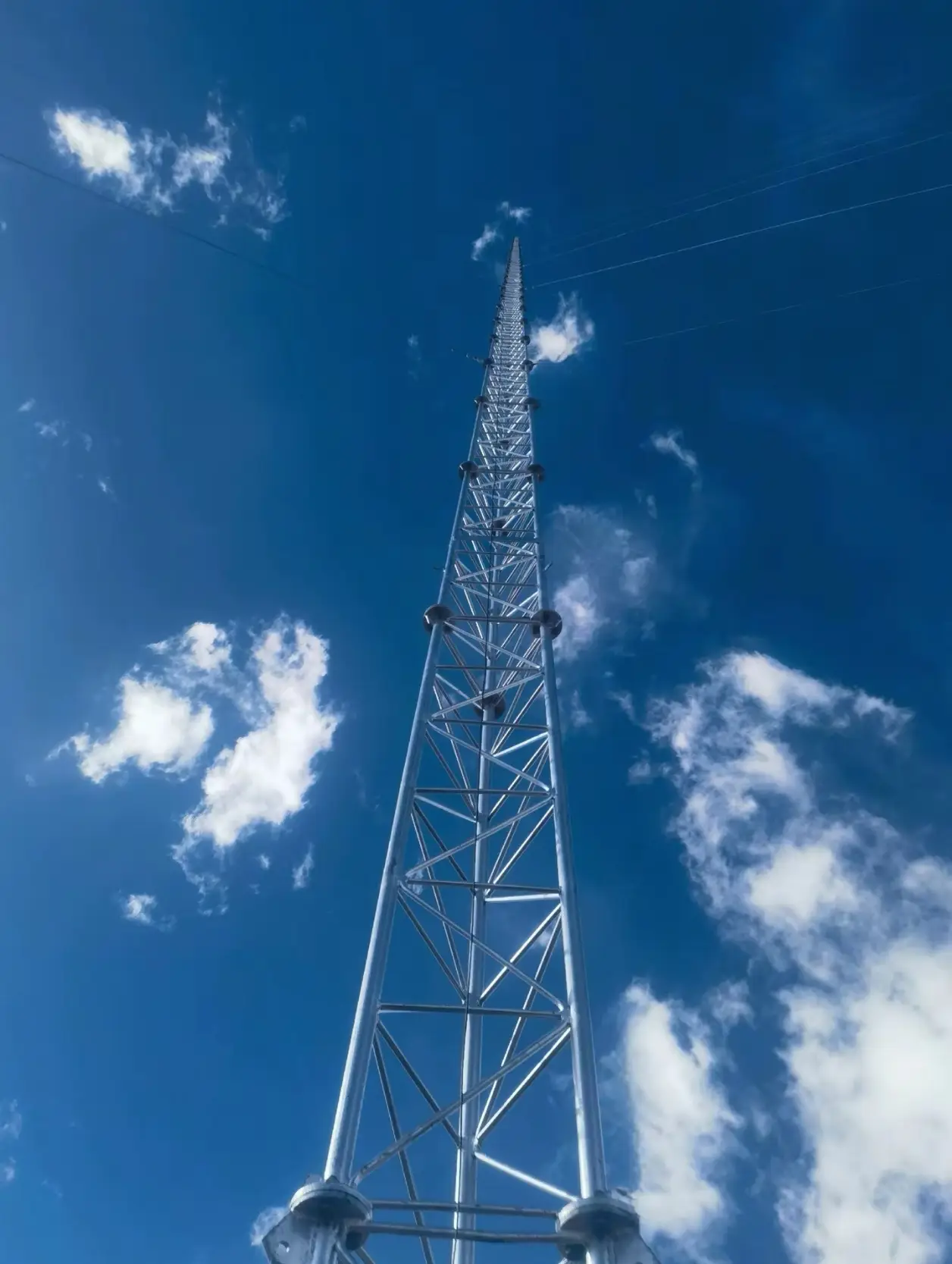

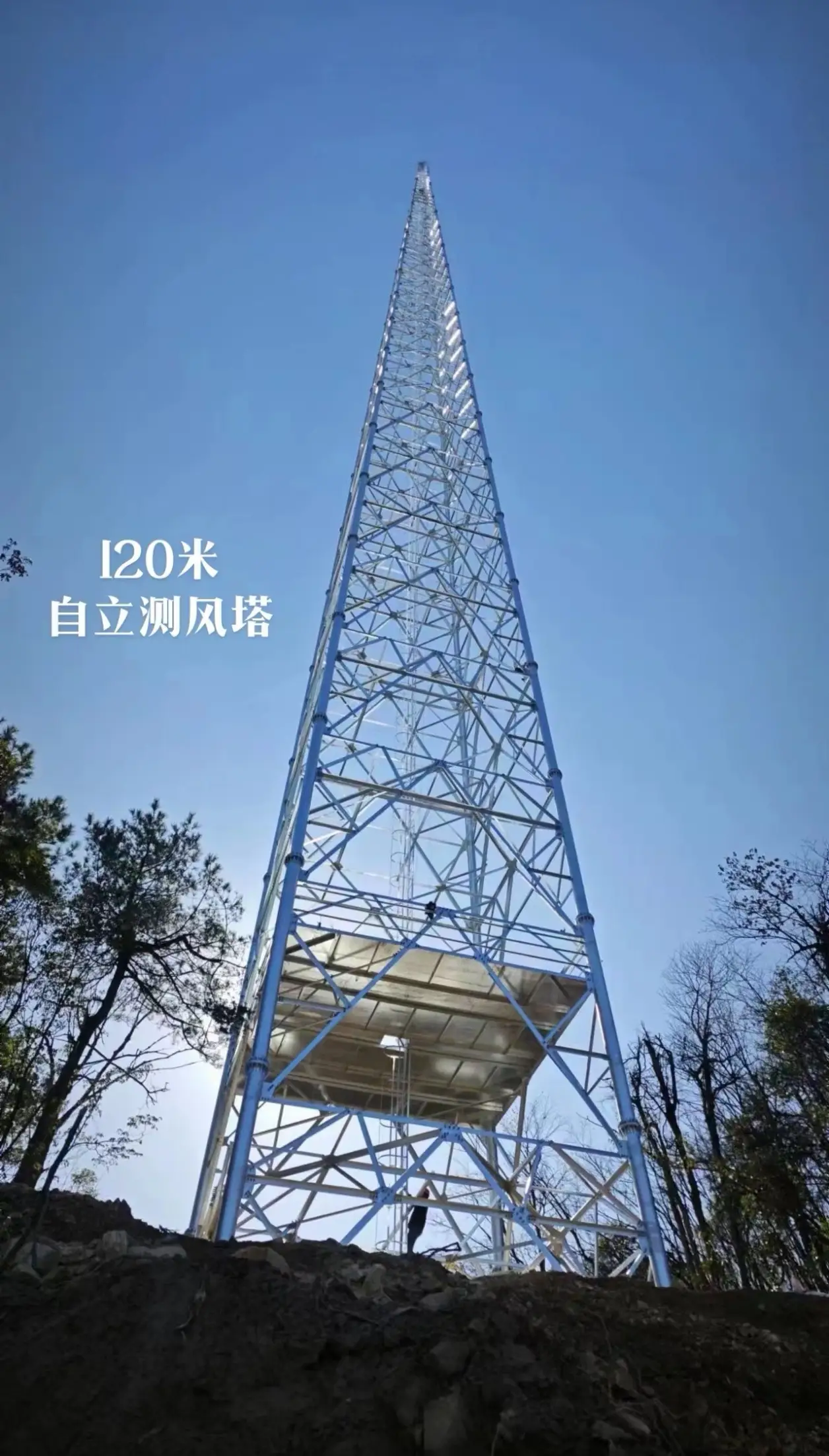

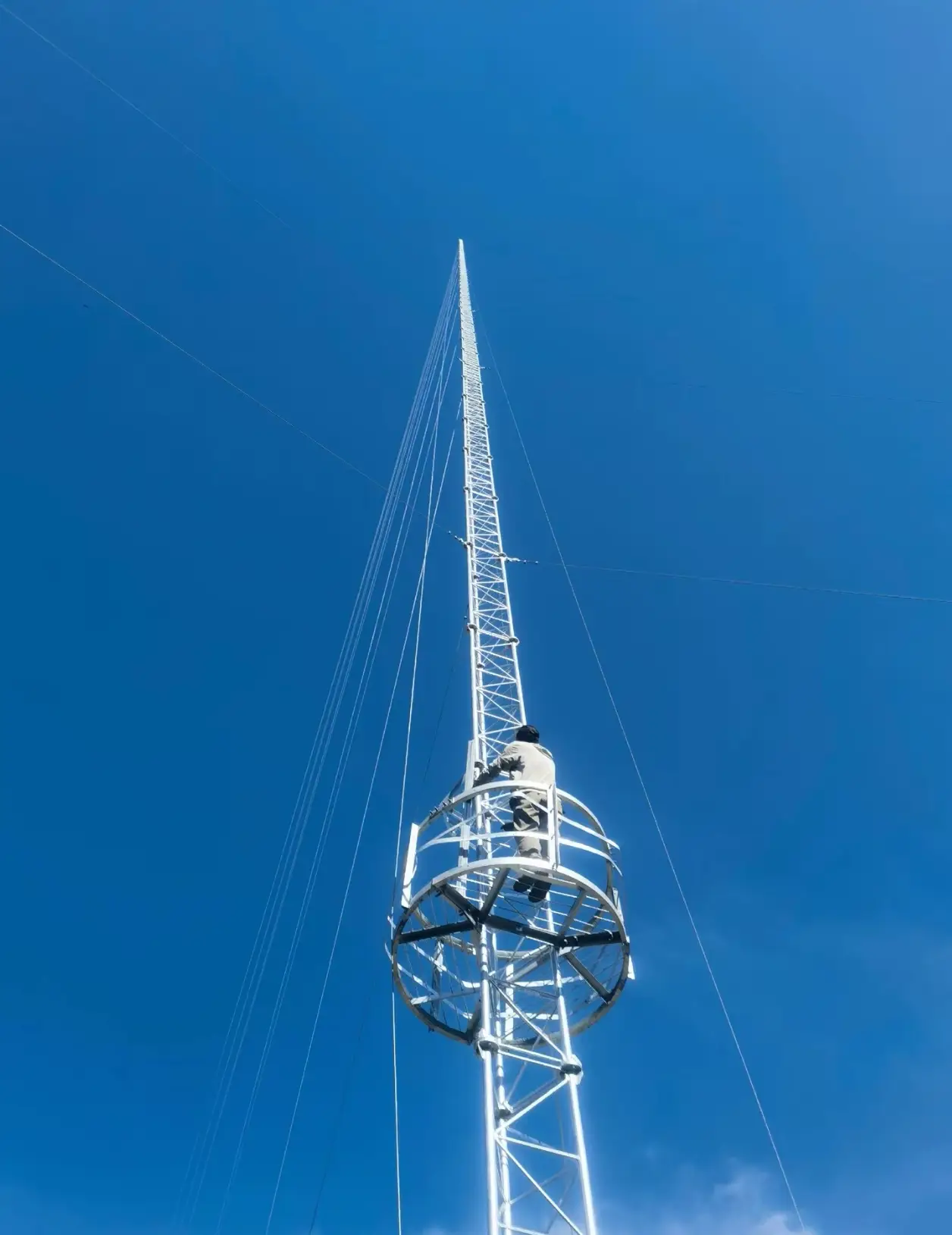

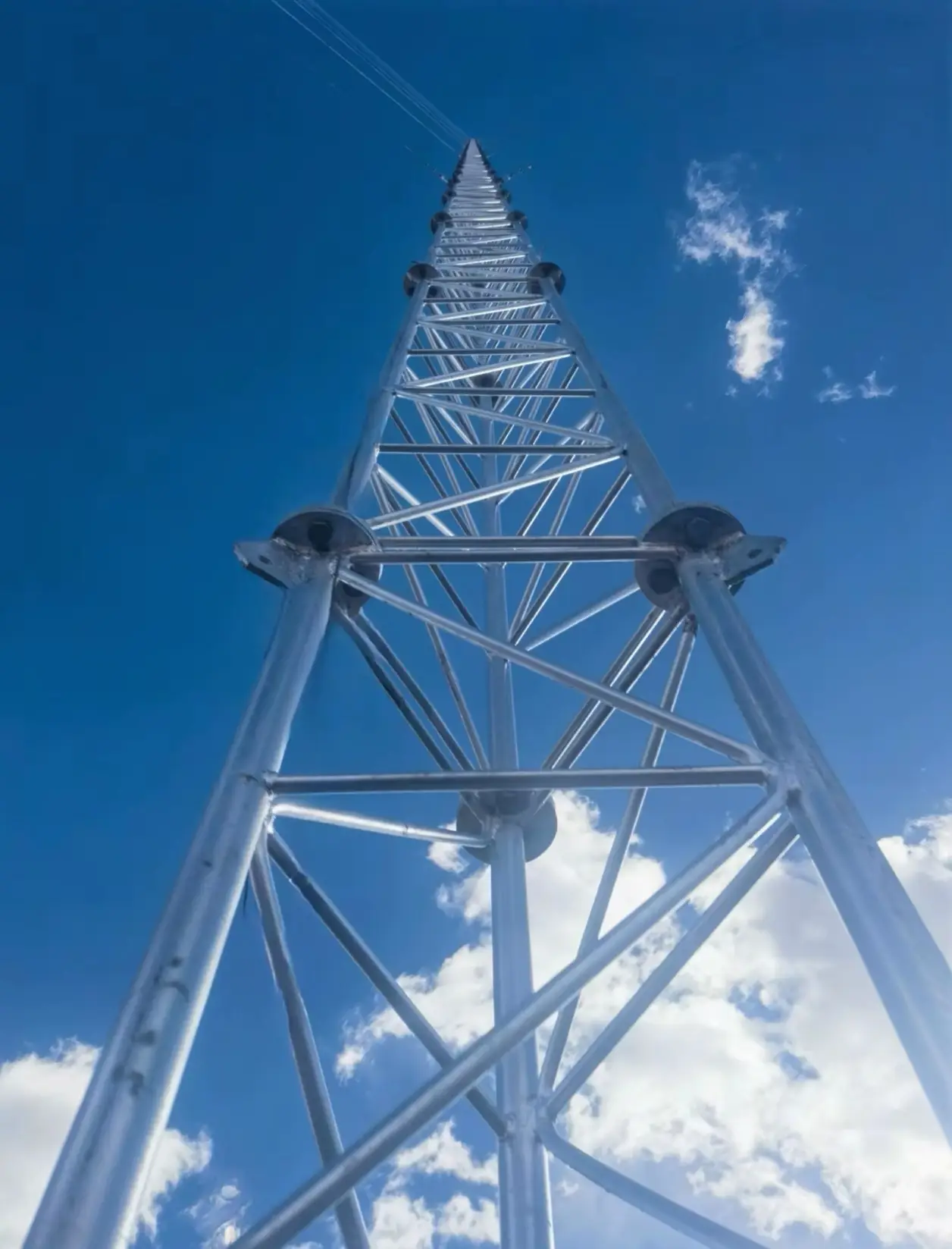

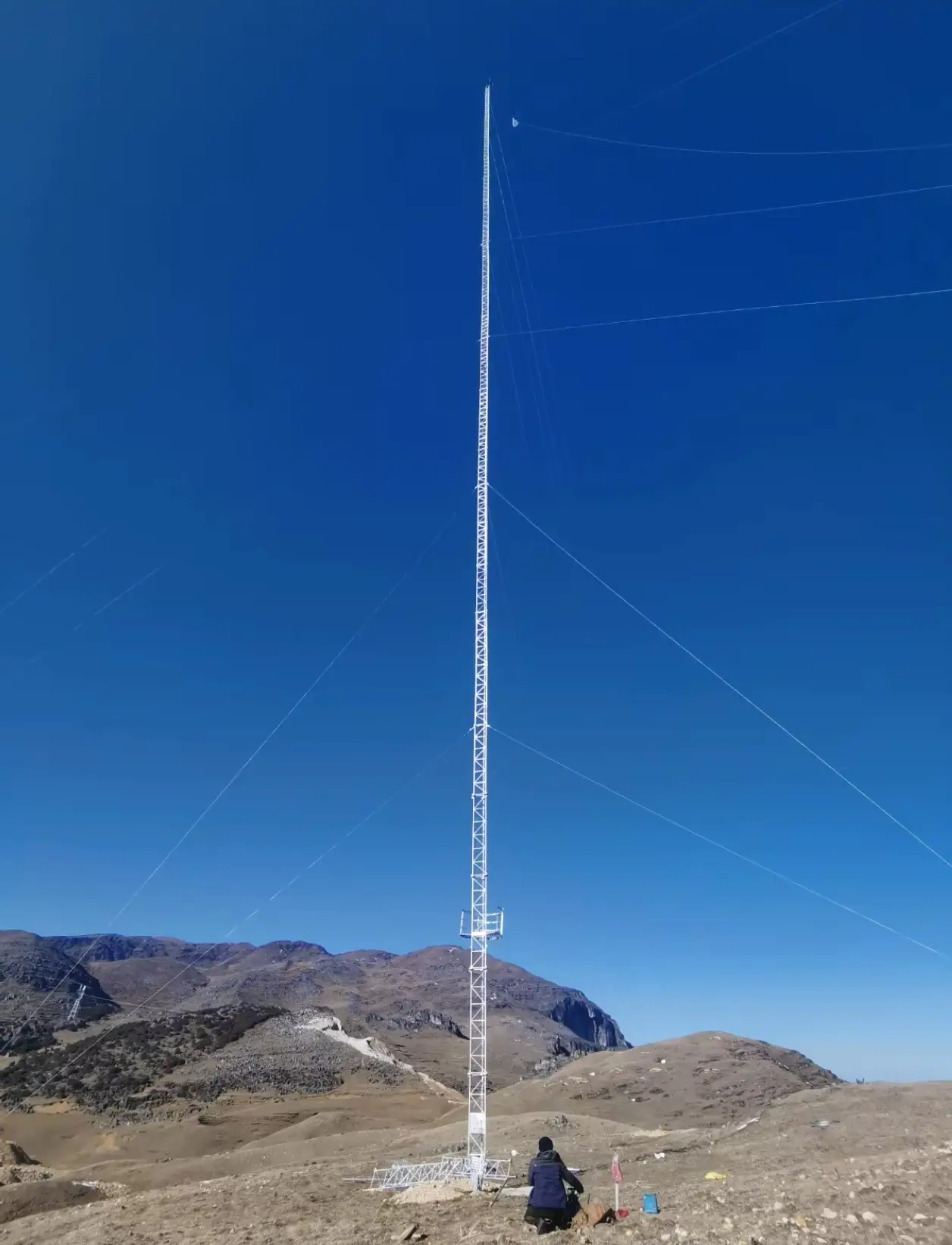

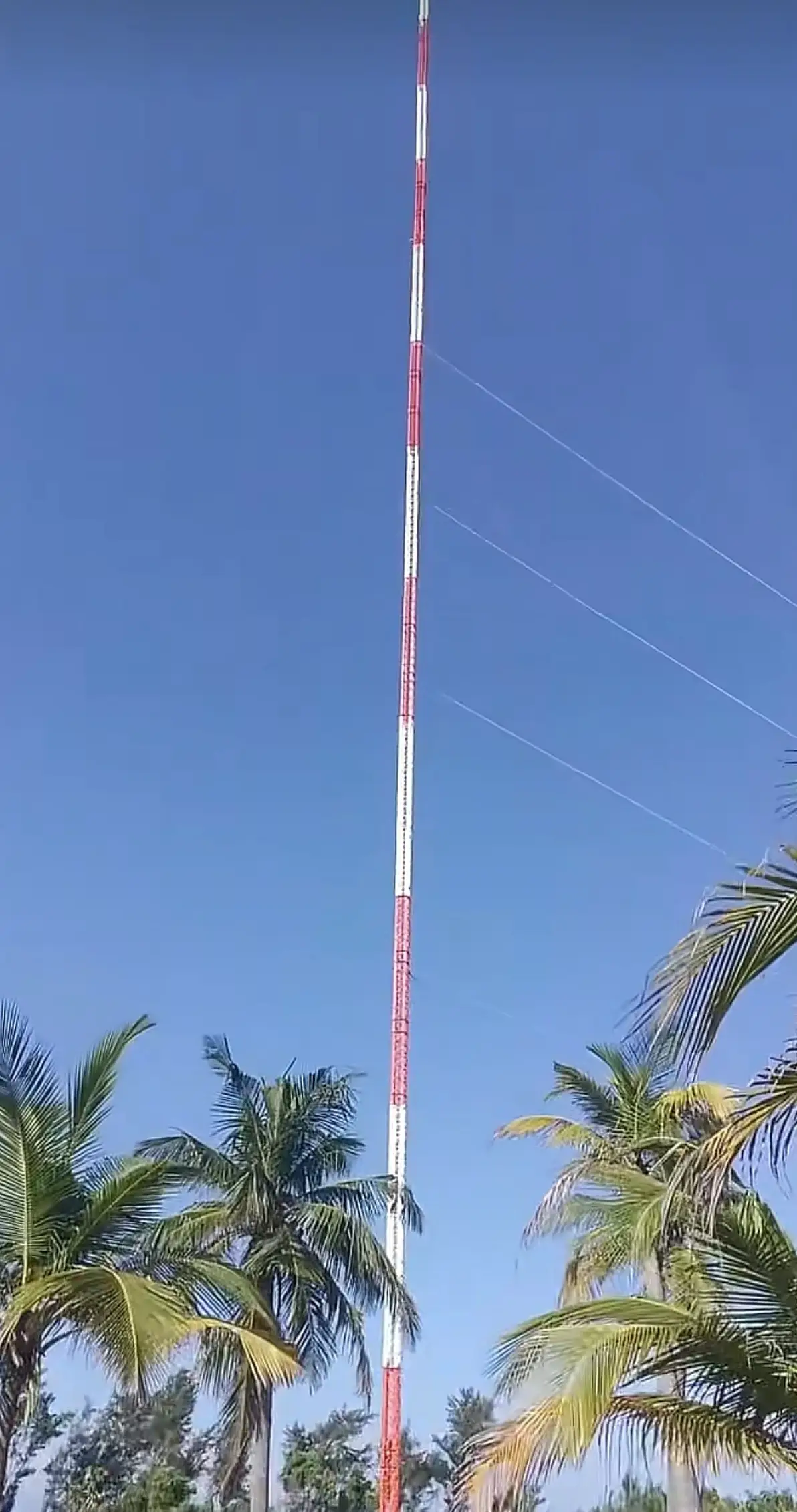

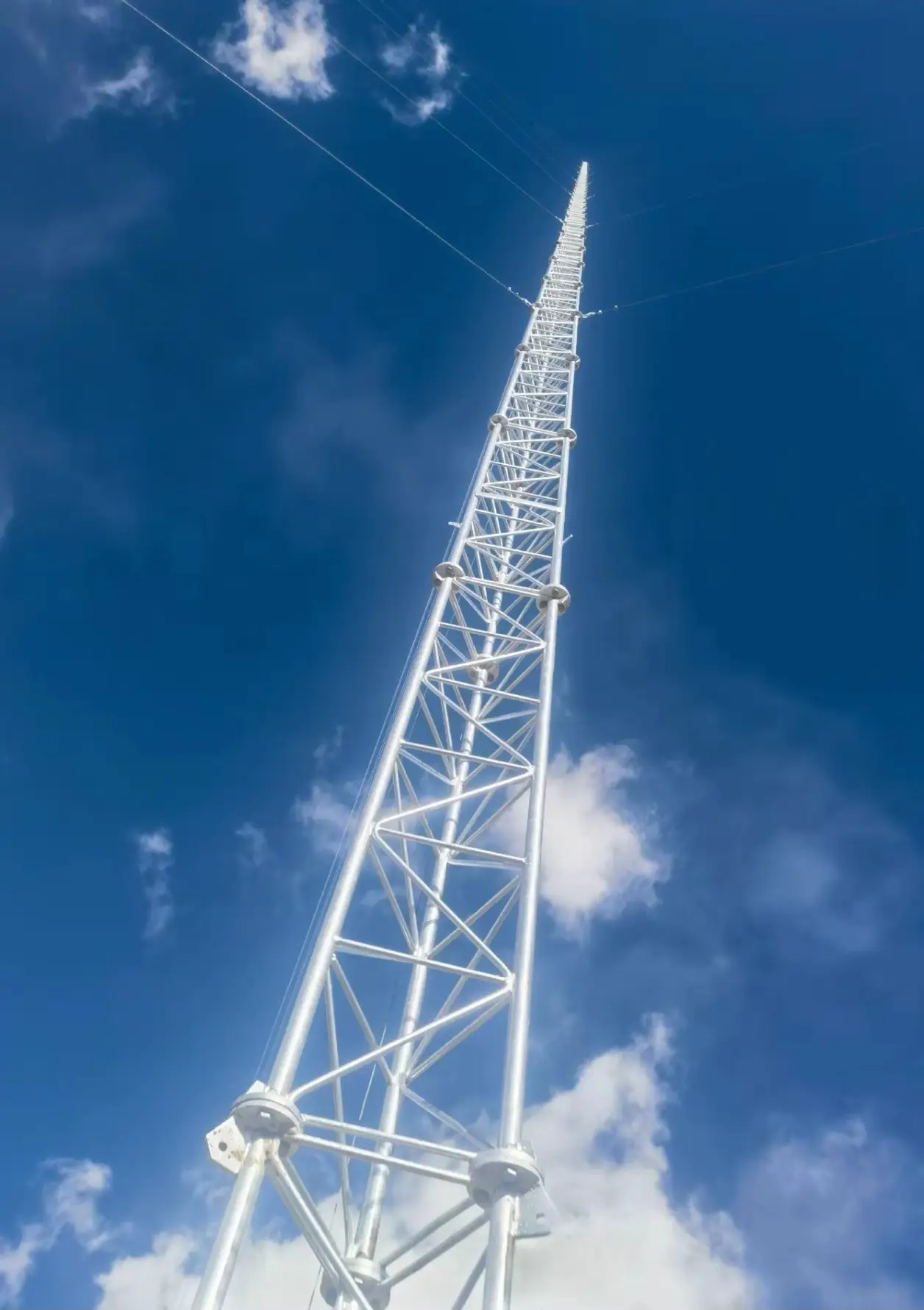

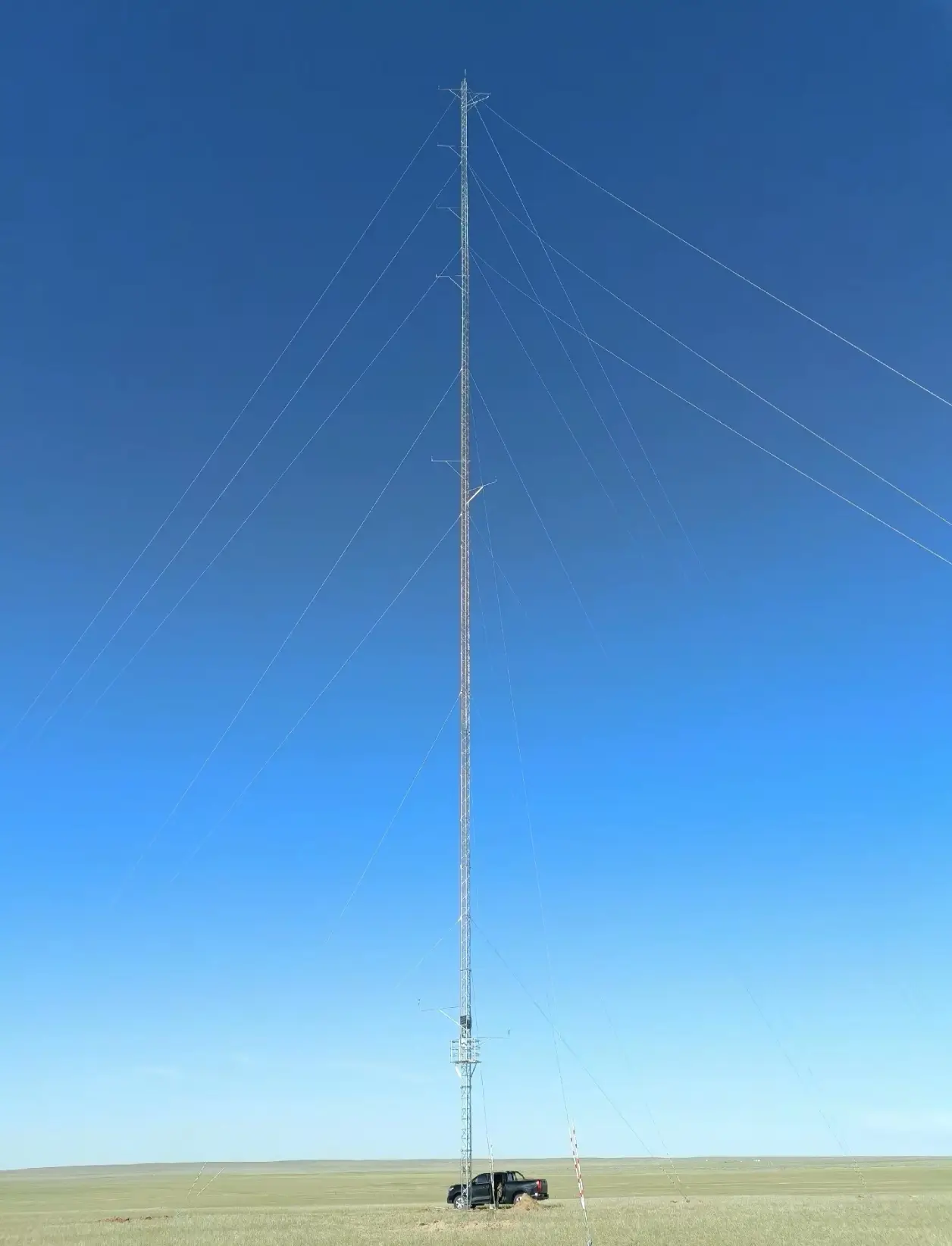

Yutai wind measurement tower products include two main forms: guyed and self-supporting wind measurement towers. Guyed towers adopt a triangular truss structure, fixed by three layers of guy wires, featuring low steel consumption, low cost, and convenient installation, making them the mainstream form for wind farm wind measurement.

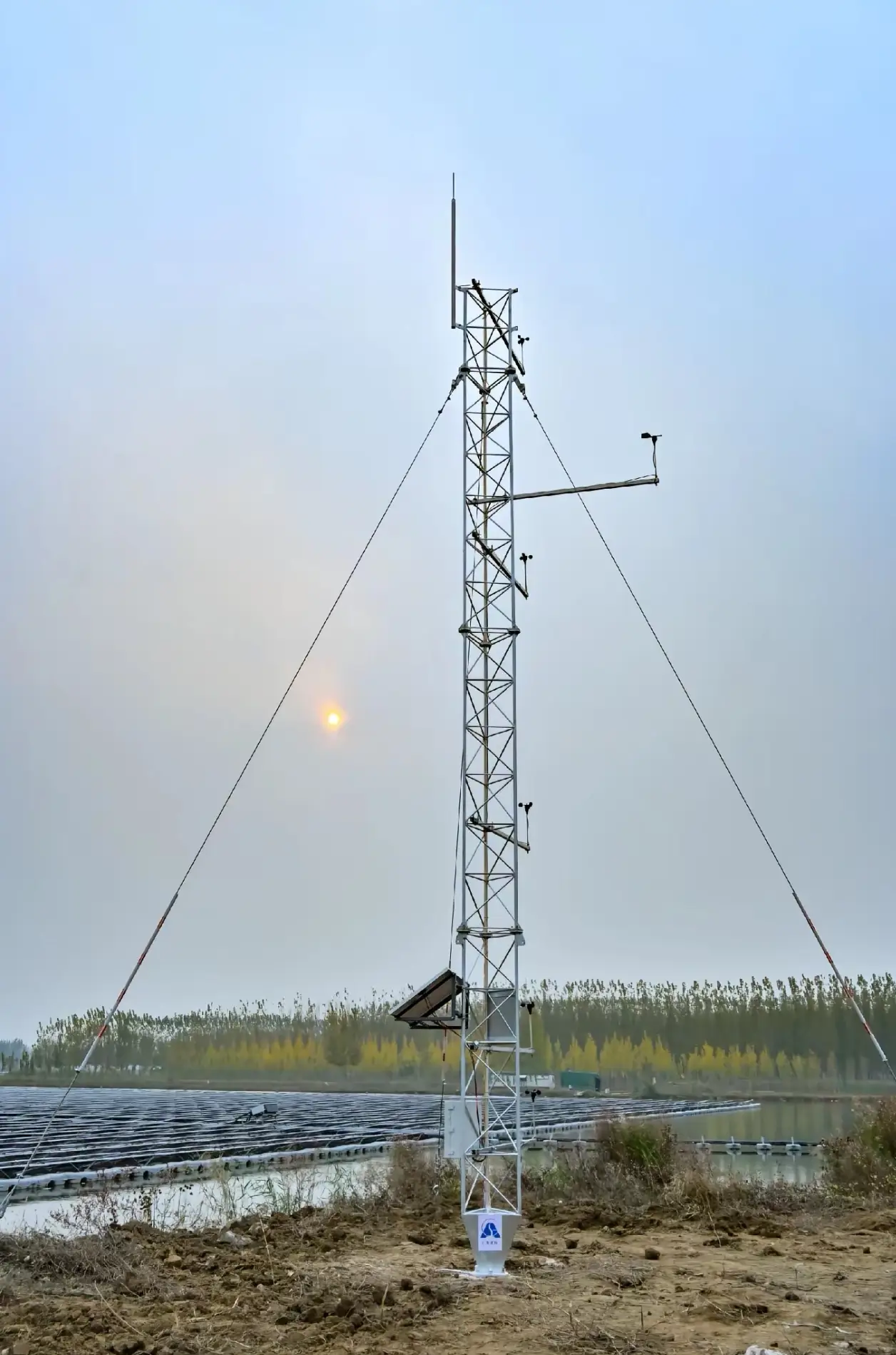

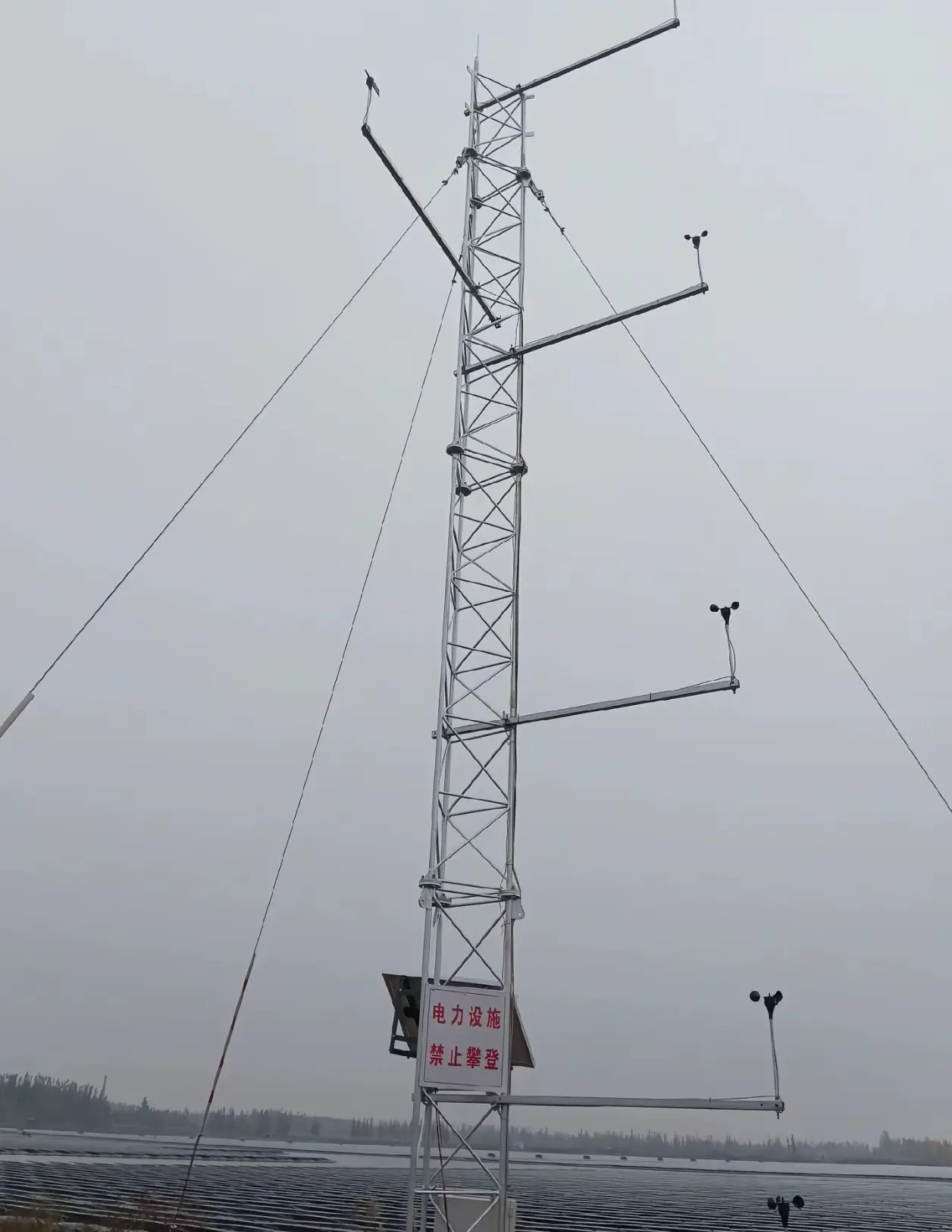

Tower verticality ≤1/1000, design wind speed above 50m/s, seismic intensity 8. Wind measurement towers generally install multiple layers of observation equipment at different heights such as 10m, 30m, 50m, 70m, 100m, including wind speed sensors, wind direction sensors, temperature sensors, air pressure sensors, etc. Design service life over 50 years.
| Parameter | Value |
|---|---|
| Structure Type | Guyed triangular truss / Self-supporting truss |
| Standard Heights | 60m, 80m, 100m, 120m, 150m (Custom 30-200m) |
| Main Material | Q235B Round steel / Angle steel / Steel pipe |
| Design Wind Speed | 40-60m/s |
| Seismic Rating | Intensity 8 |
| Ice Coating | 5-10mm |
| Tower Verticality | ≤ 1/1000 |
| Guy Layers | 3-5 layers (Guyed type) |
| Observation Levels | 3-6 layers (Configured by height) |
| Sensors | Anemometer, wind vane, temp, pressure, humidity (Optional) |
| Wind Speed Range | 0-60m/s, accuracy ±0.1m/s |
| Wind Direction Range | 0-360°, accuracy ±2.5° |
| Temperature Range | -40℃ ~ +50℃, accuracy ±0.5℃ |
| Data Logging | Automatic data logger, storage ≥1 year |
| Anti-corrosion | Hot-dip galvanizing |
| Standards | QX/T 559-2020, GB 50017 |
| Design Life | ≥ 50 years |
