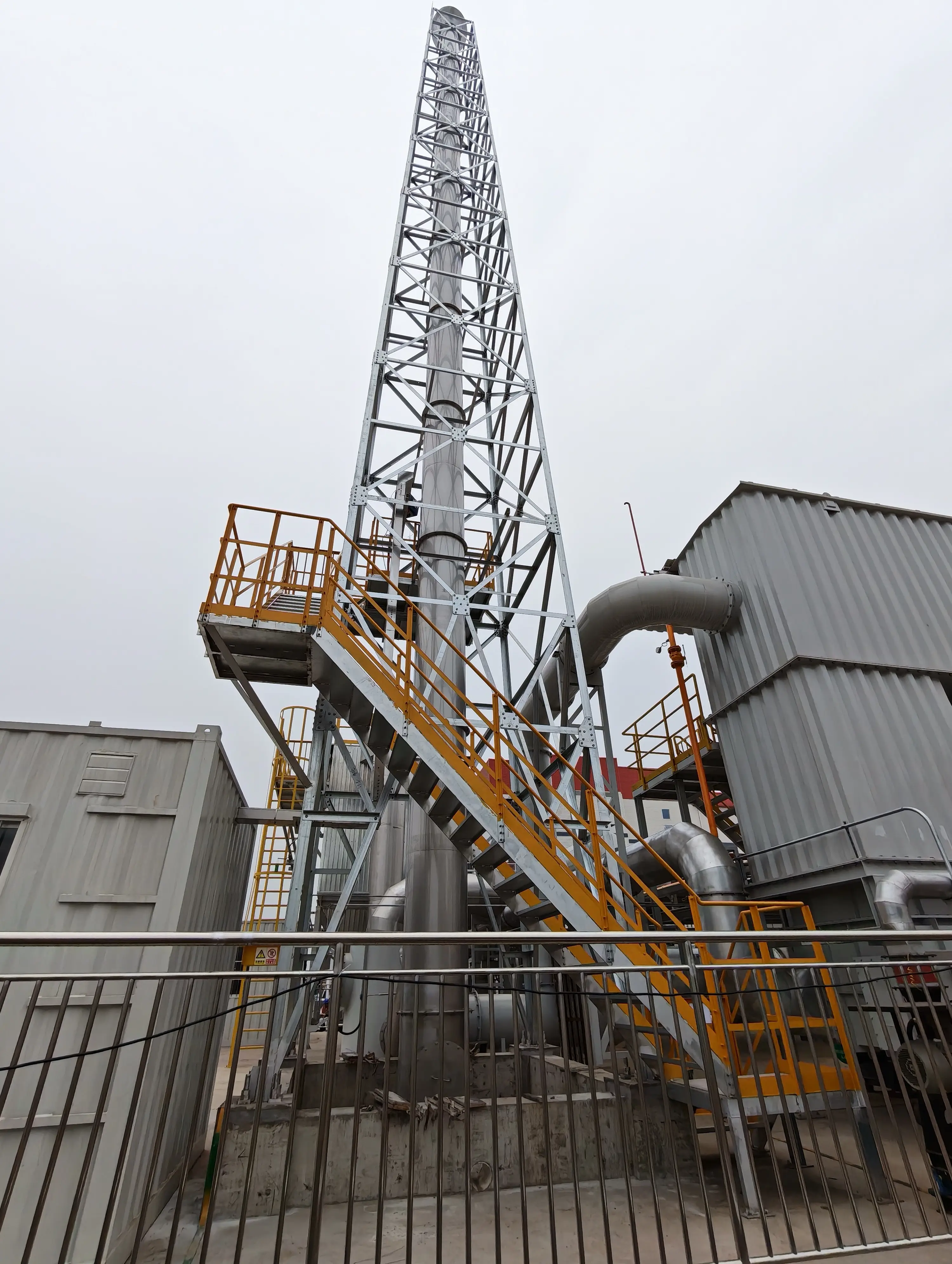

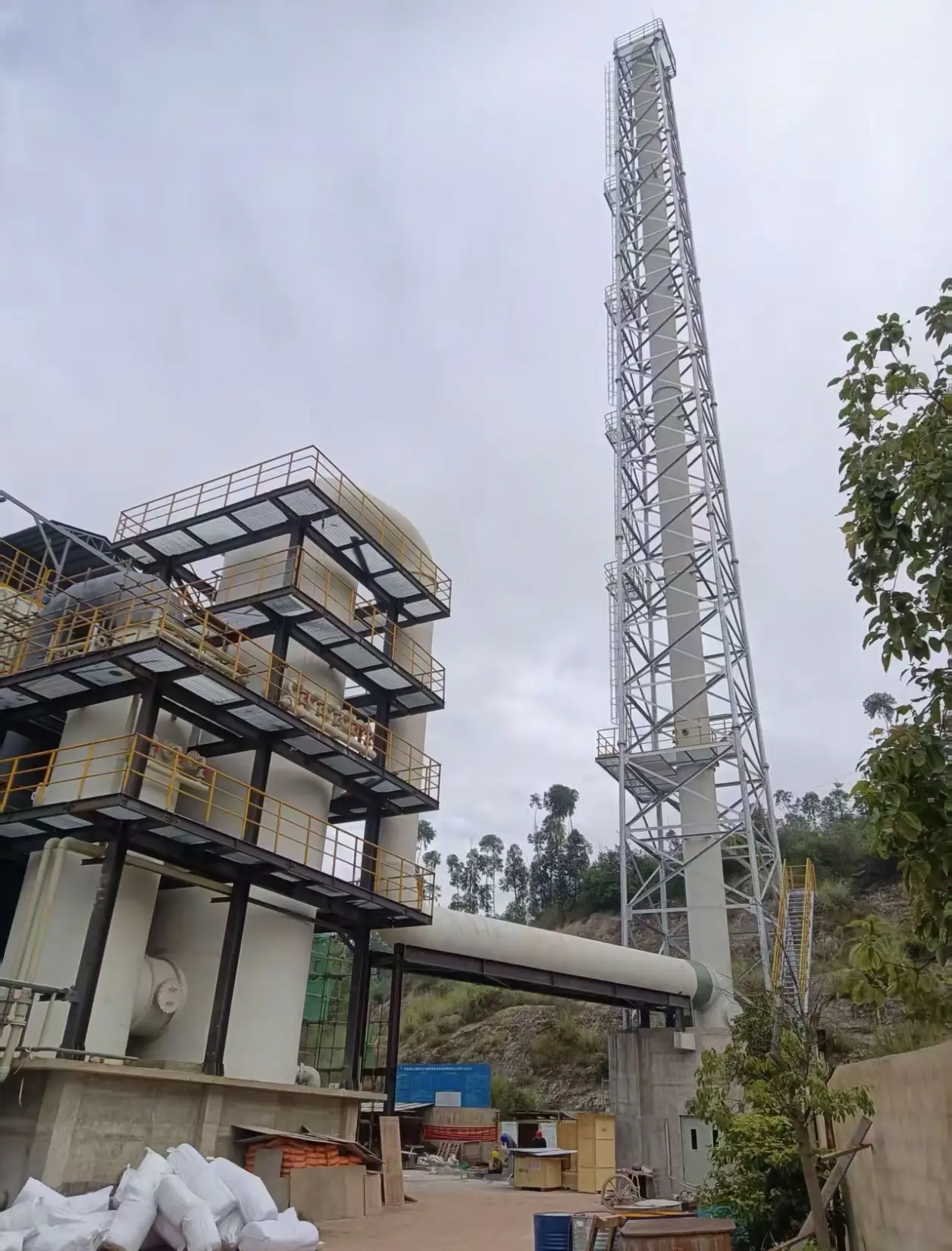

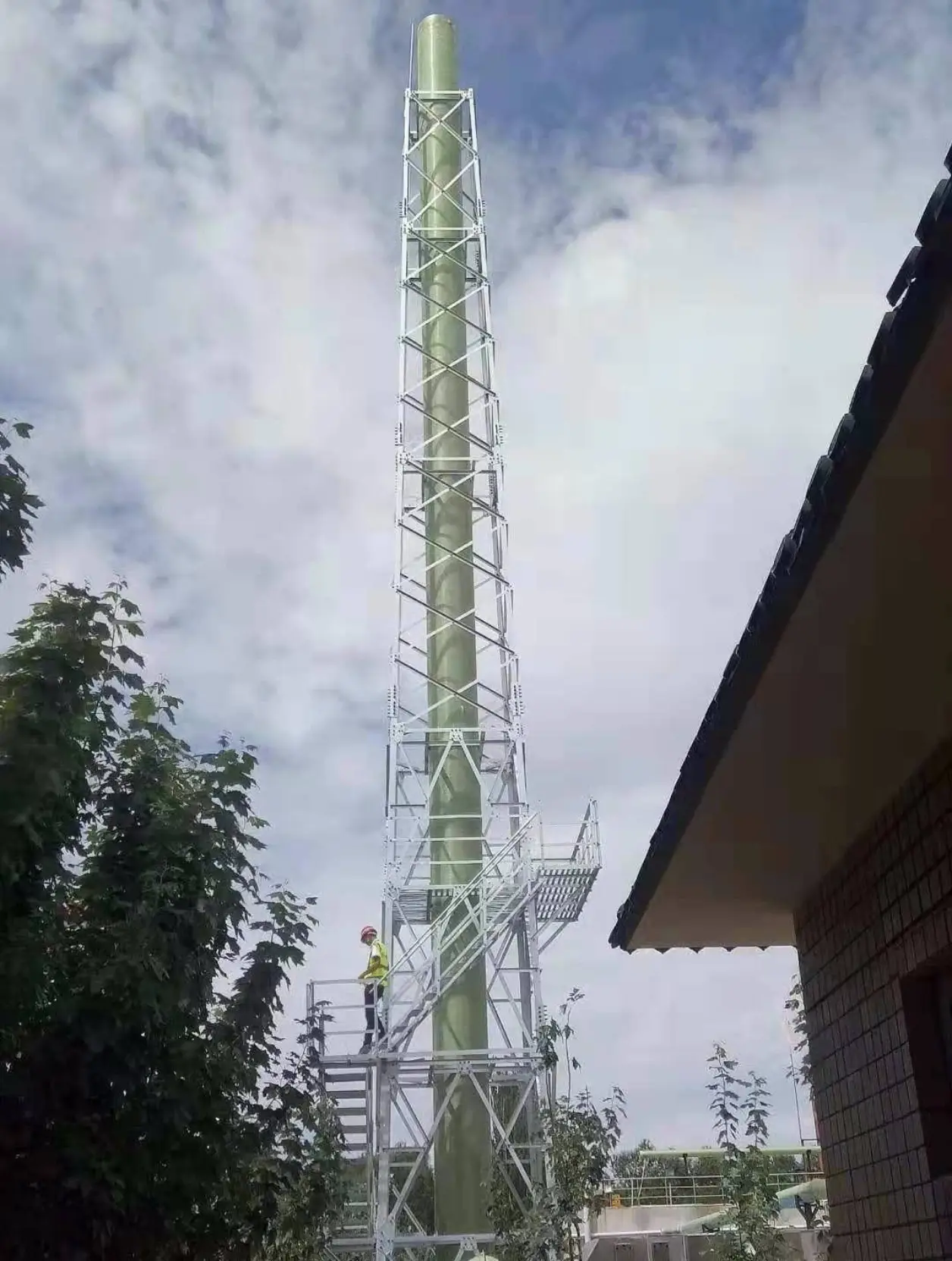

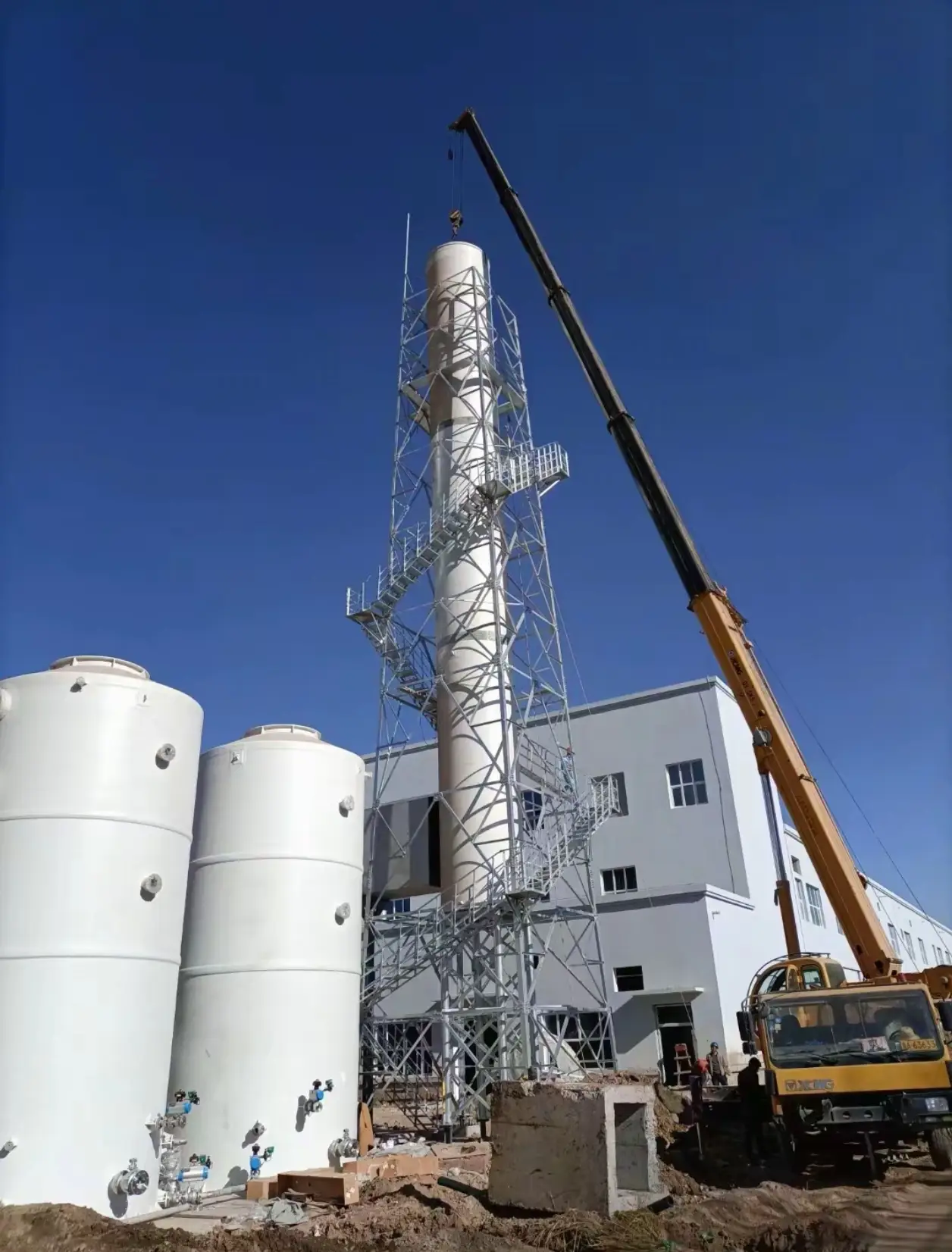

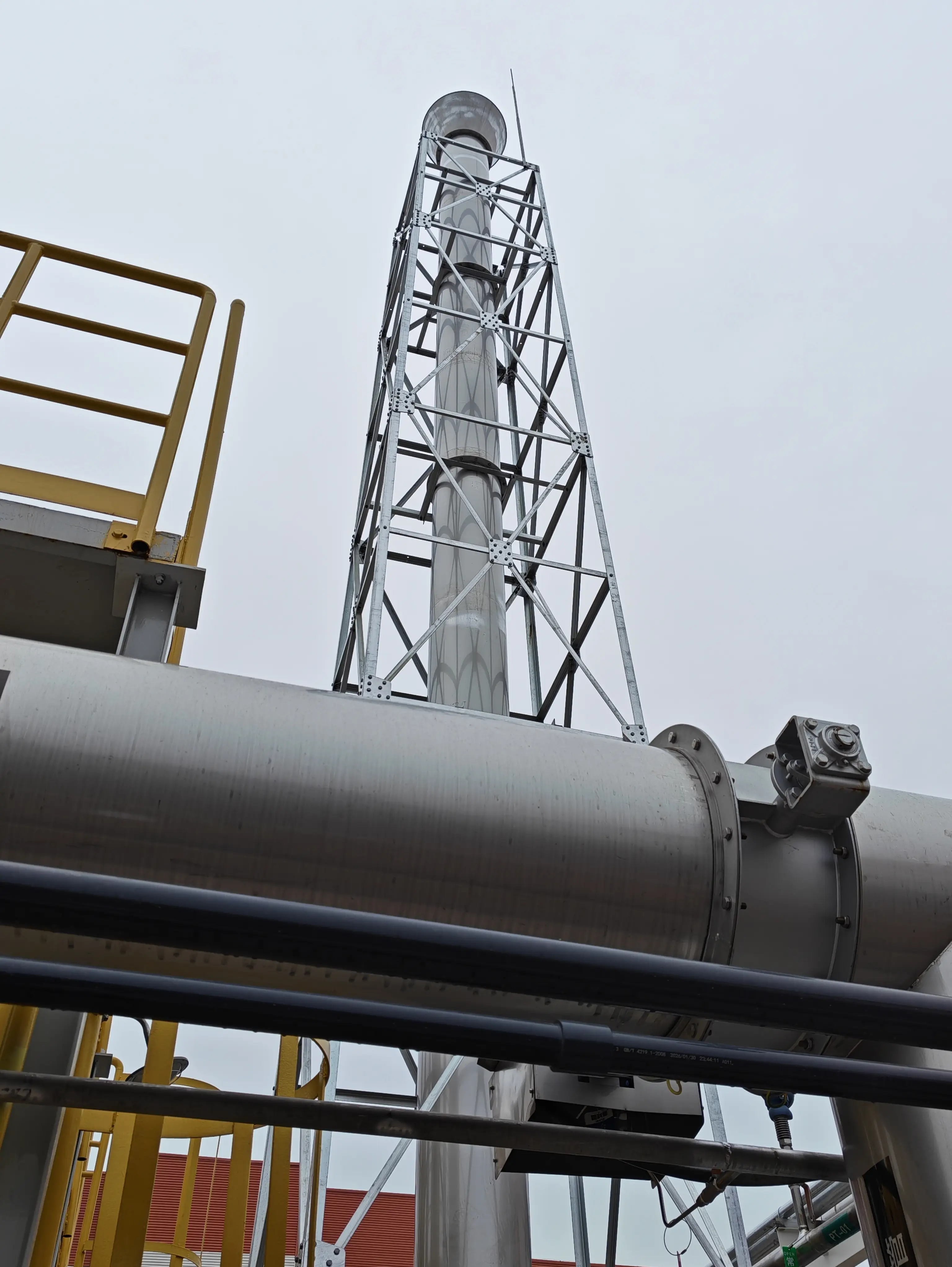

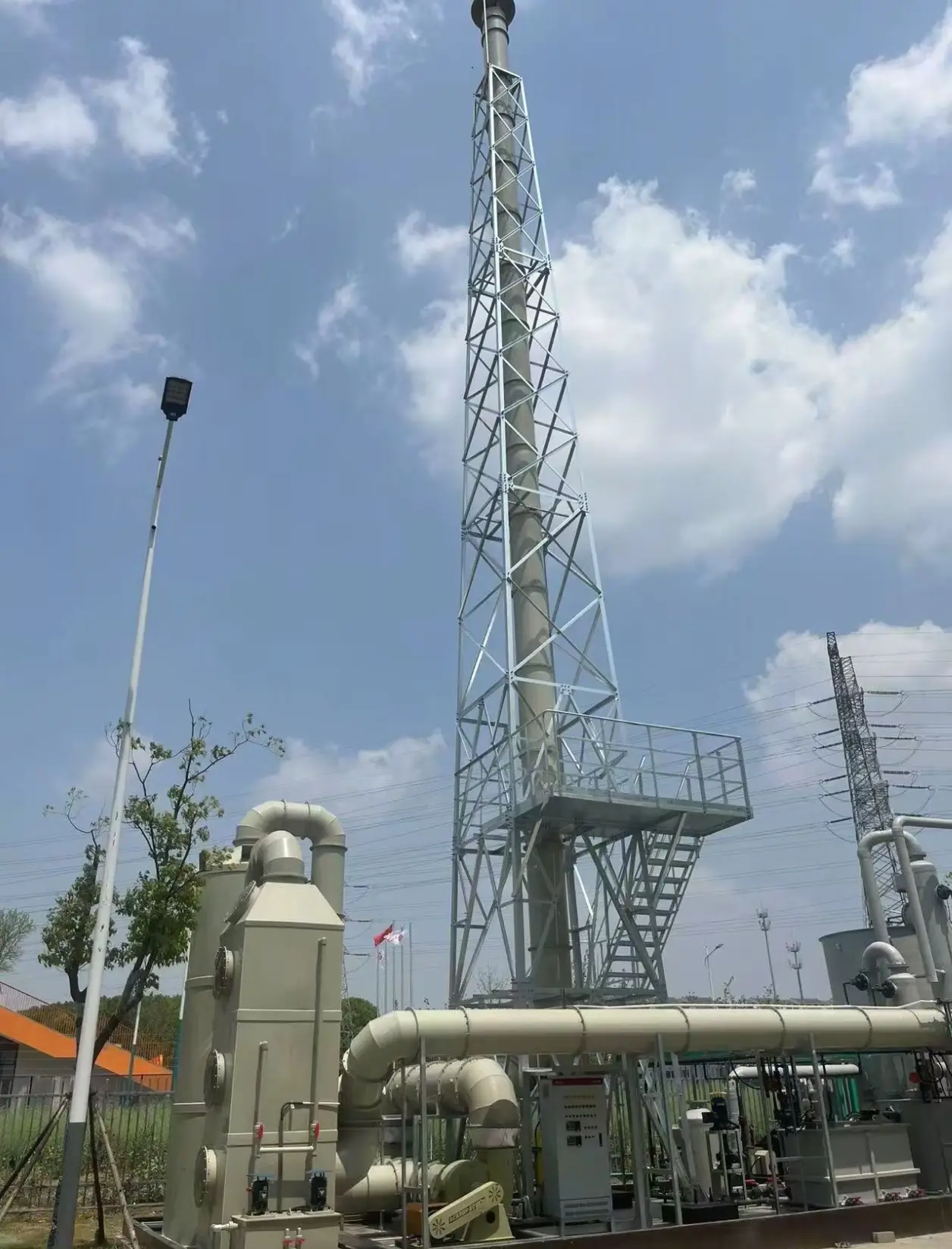

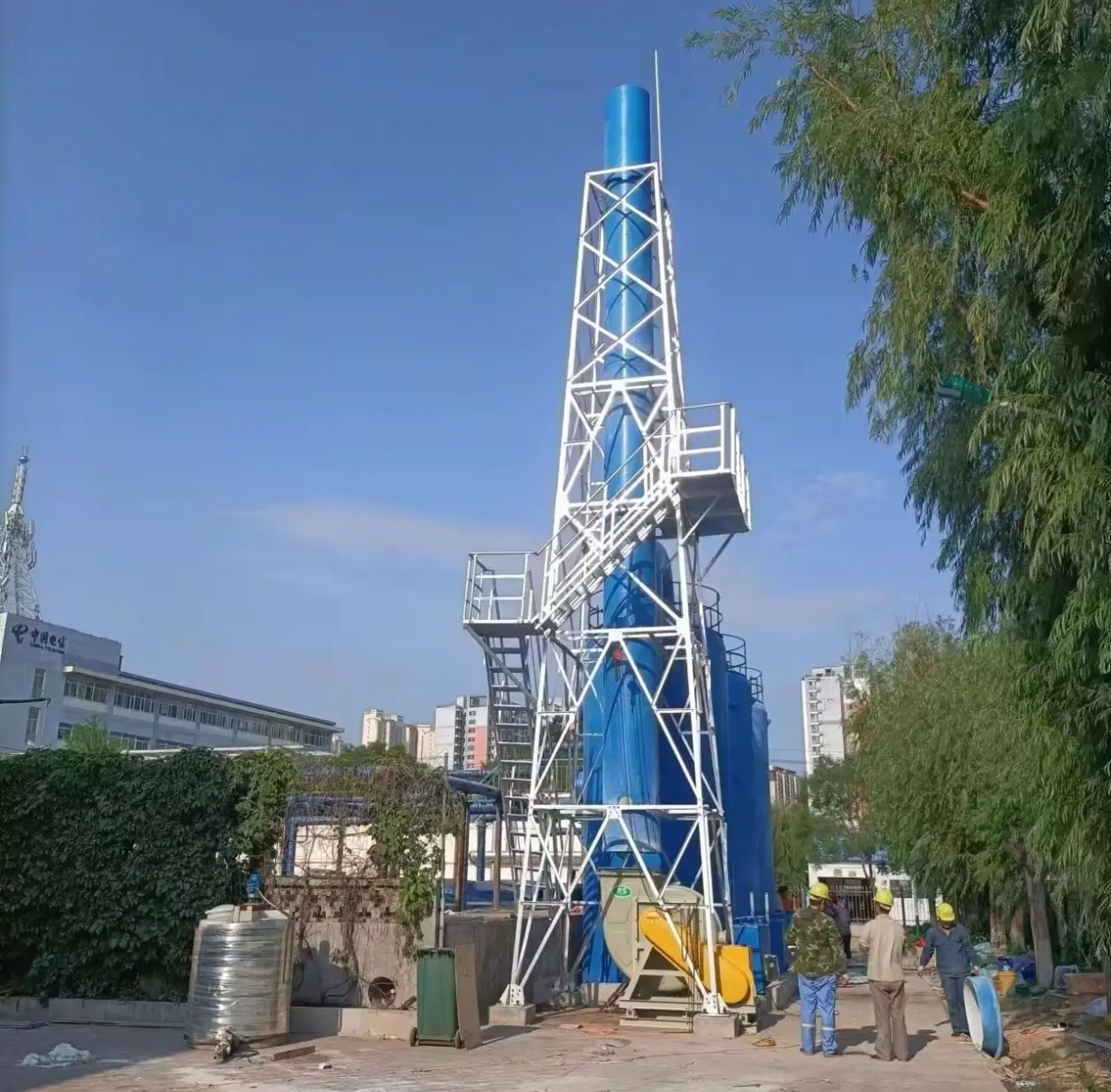

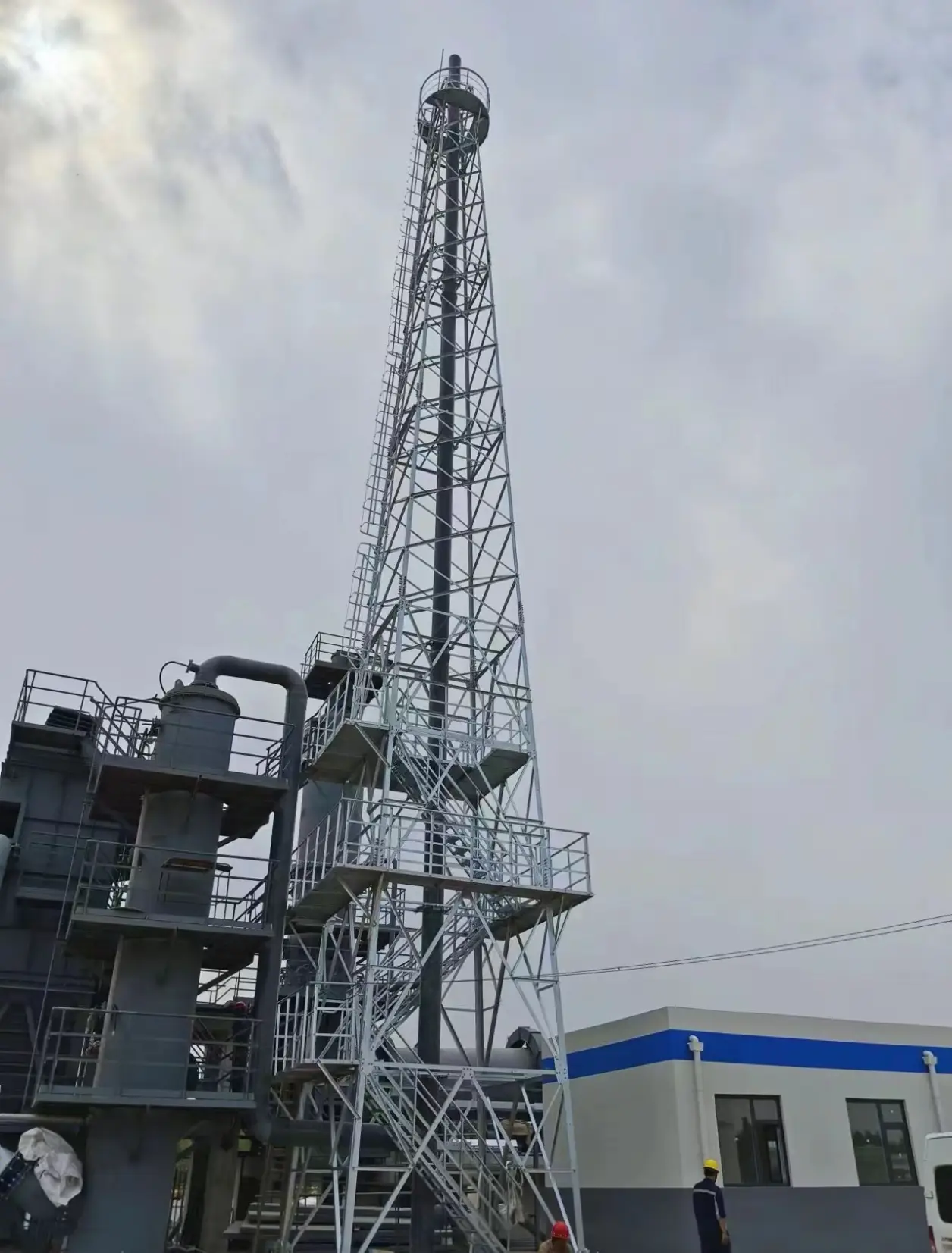

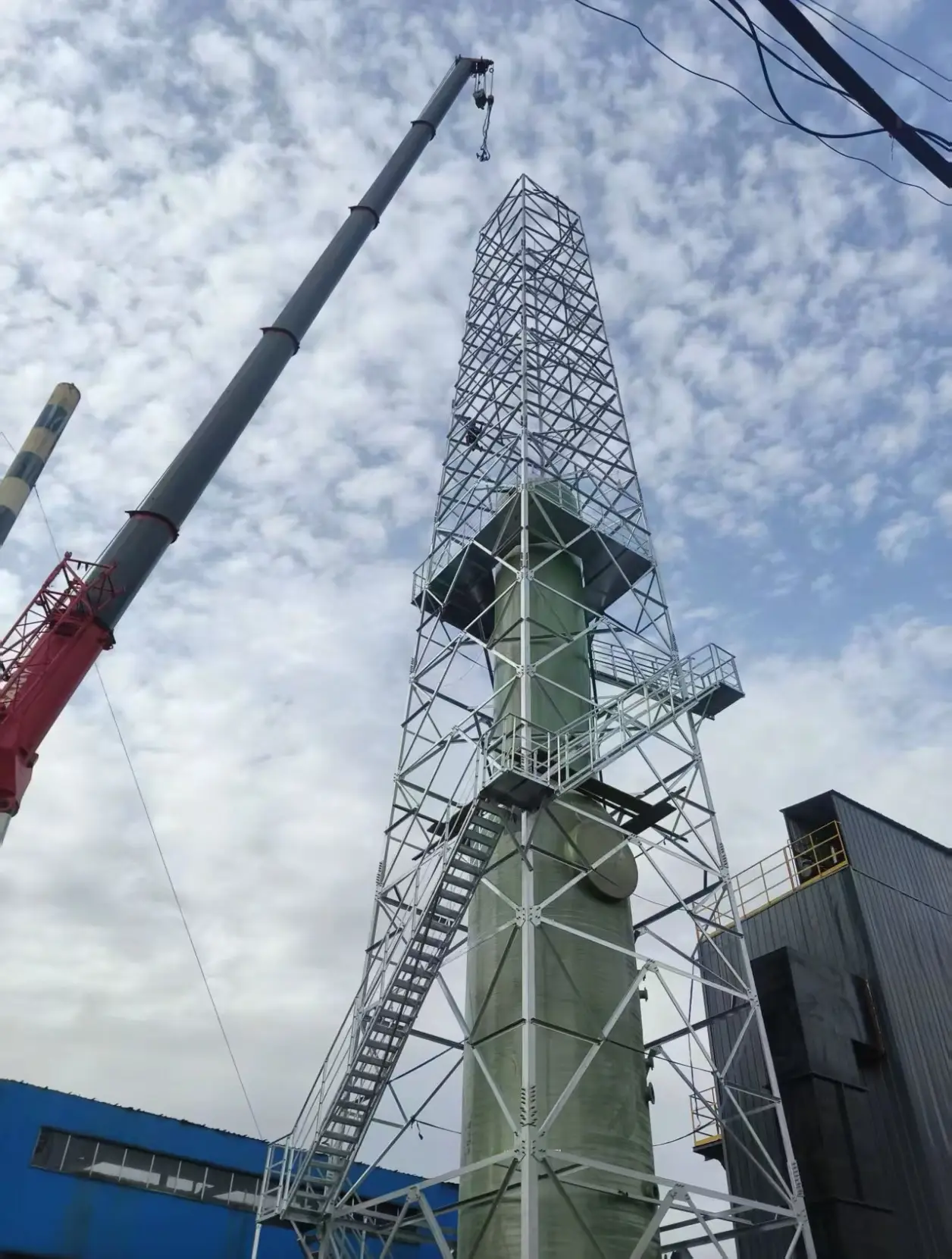

The industrial chimney support tower, also known as chimney tower frame or tower-type chimney, is a tall steel structure tower used to support industrial chimney cylinders, mainly used in power plants, chemical plants, smelters, boiler rooms and other places requiring high-altitude waste gas emission.
Yutai chimney tower products are rich in forms, including self-supporting, guyed, sleeve-type, multi-tube chimney towers, etc. The tower frame adopts angle steel or steel pipe truss structure, and the chimney inner liner can be made of FRP, stainless steel (304/316L), carbon steel, titanium-steel clad plate, etc., selected according to different flue gas composition and temperature requirements.
Products are designed and manufactured strictly in accordance with GB 50051 'Code for Design of Chimneys', GB 50017 and other national standards. Tower frame hot-dip galvanized anti-corrosion, design service life over 50 years. Customizable products with one-stop service from design, manufacturing to installation.
| Parameter | Value |
|---|---|
| Structure Type | Self-supporting / Guyed / Sleeve / Multi-tube |
| Height Range | Self-supporting 15-80m / Guyed 30-150m (Customizable) |
| Chimney Diameter | Φ500mm - Φ6000mm (Designed by flue gas volume) |
| Tower Material | Q235B / Q355B Angle steel or steel pipe |
| Inner Cylinder | FRP / 304/316L Stainless / Carbon steel / Ti-clad steel |
| Design Wind Pressure | 0.4-0.8kN/m² |
| Seismic Rating | Intensity 8 |
| Operating Temp | FRP ≤100℃ / Stainless ≤400℃ / Carbon ≤300℃ |
| Flue Gas Velocity | 10-30m/s (By design) |
| Wall Thickness | Tower 6-16mm / Inner cylinder 3-20mm |
| Platforms | 1-3 maintenance platforms with ladder cage |
| Aviation Lights | At top and middle layers (per height requirements) |
| Tower Anti-corrosion | Hot-dip galvanized + anti-corrosion topcoat |
| Standards | GB 50051, GB 50017 |
| Design Life | ≥ 50 years |
