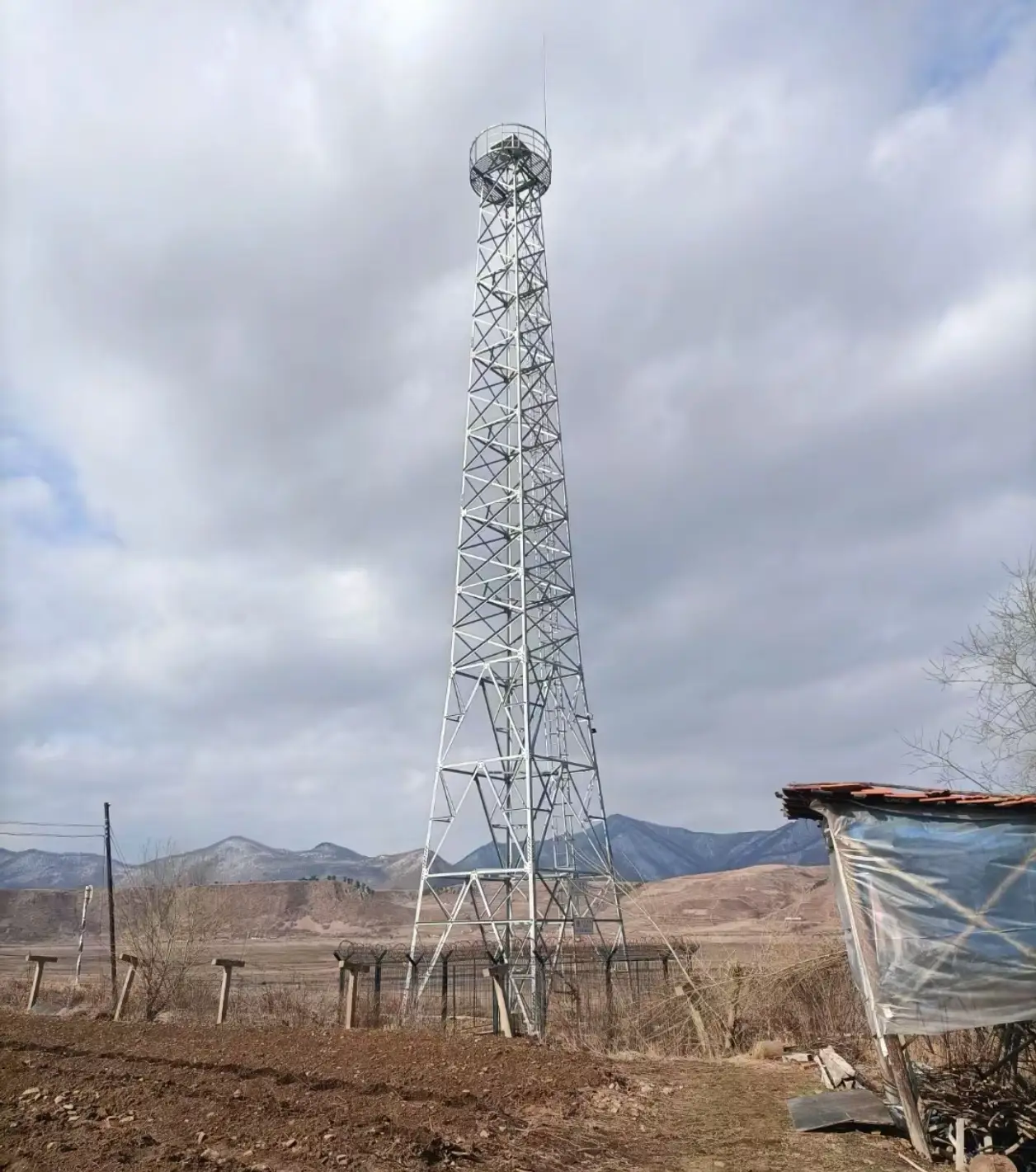

The monitoring tower is a tall steel structure used for installing video surveillance and security equipment. By elevating the monitoring height, it expands the field of view range, achieving large-scale, dead-angle-free security monitoring. Widely used in urban high-point monitoring, factory security, mine safety monitoring, border outposts, oil depot monitoring and other scenarios.

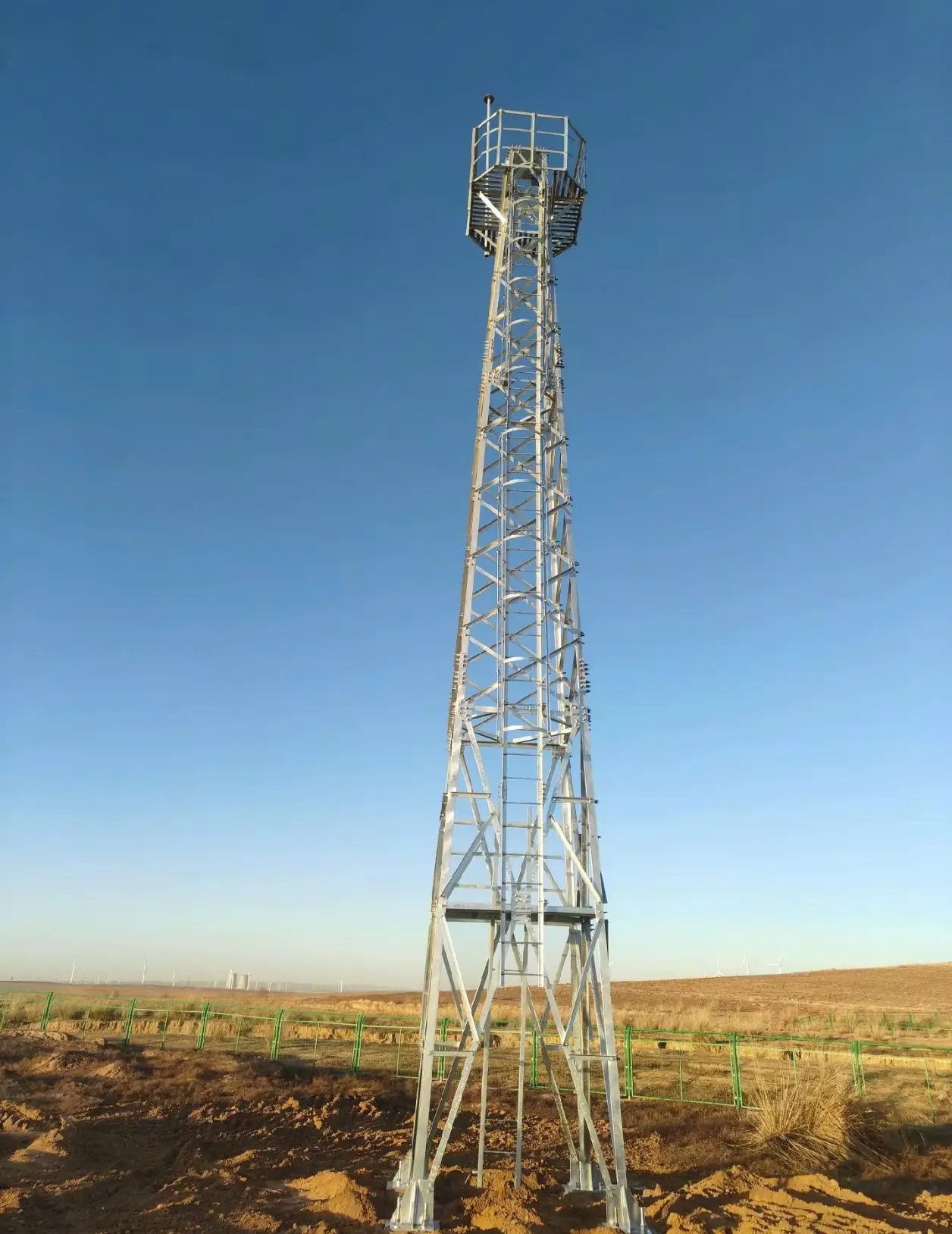

Yutai monitoring towers adopt angle steel or round steel truss structure, featuring small footprint, saving land resources, convenient site selection, light tower weight, convenient transportation and installation, short construction period, and low cost. The design complies with national steel structure design specifications and tower mast design regulations.

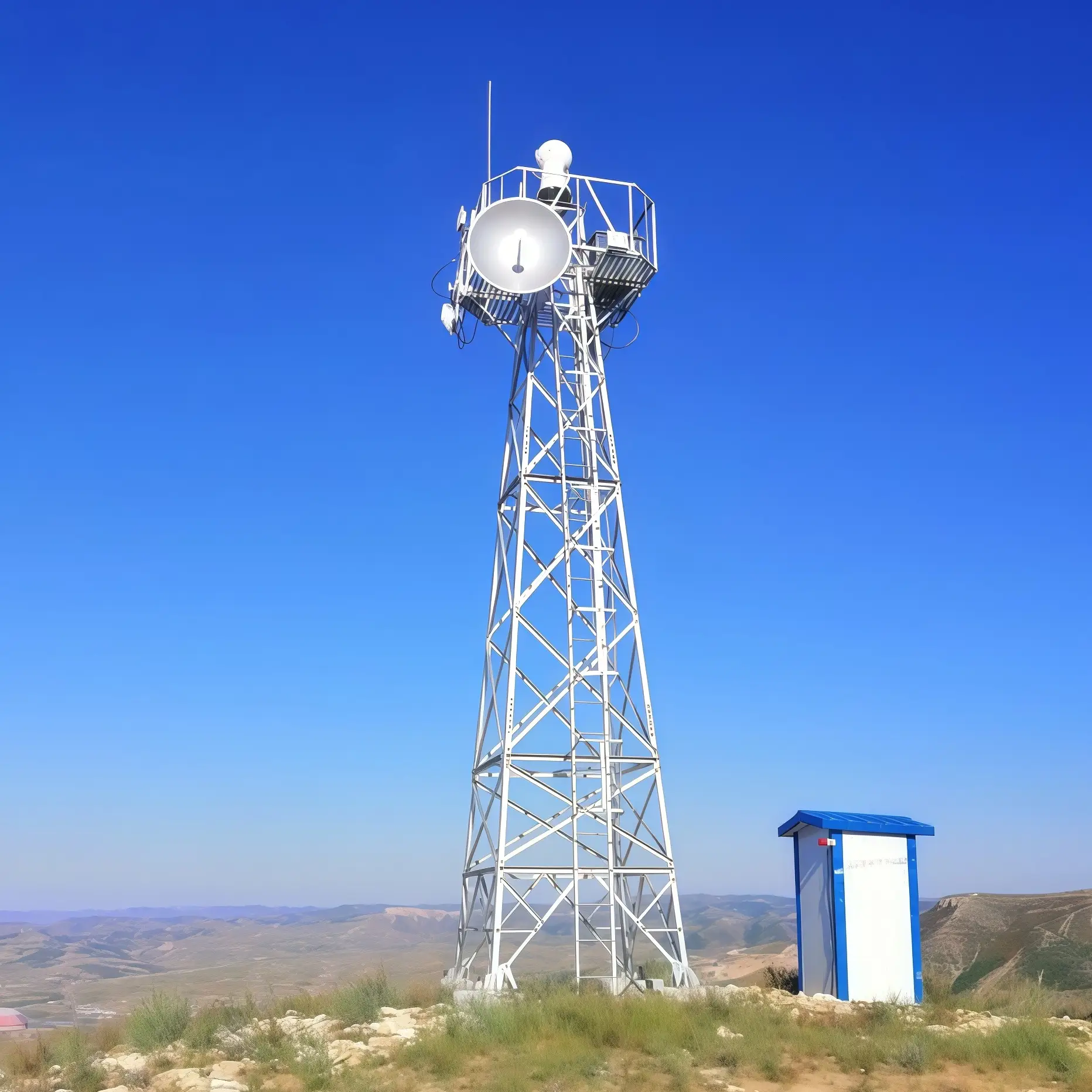

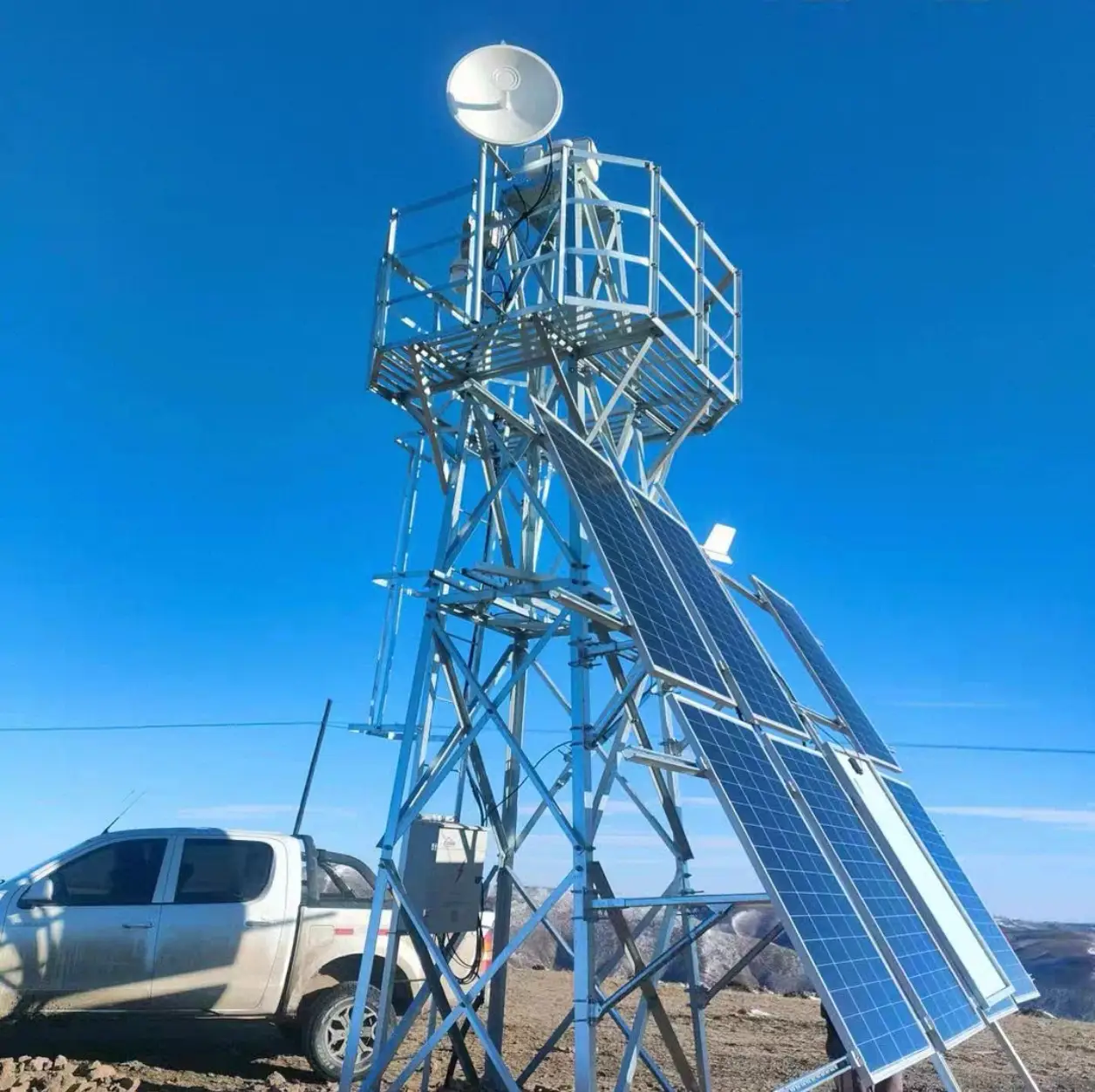

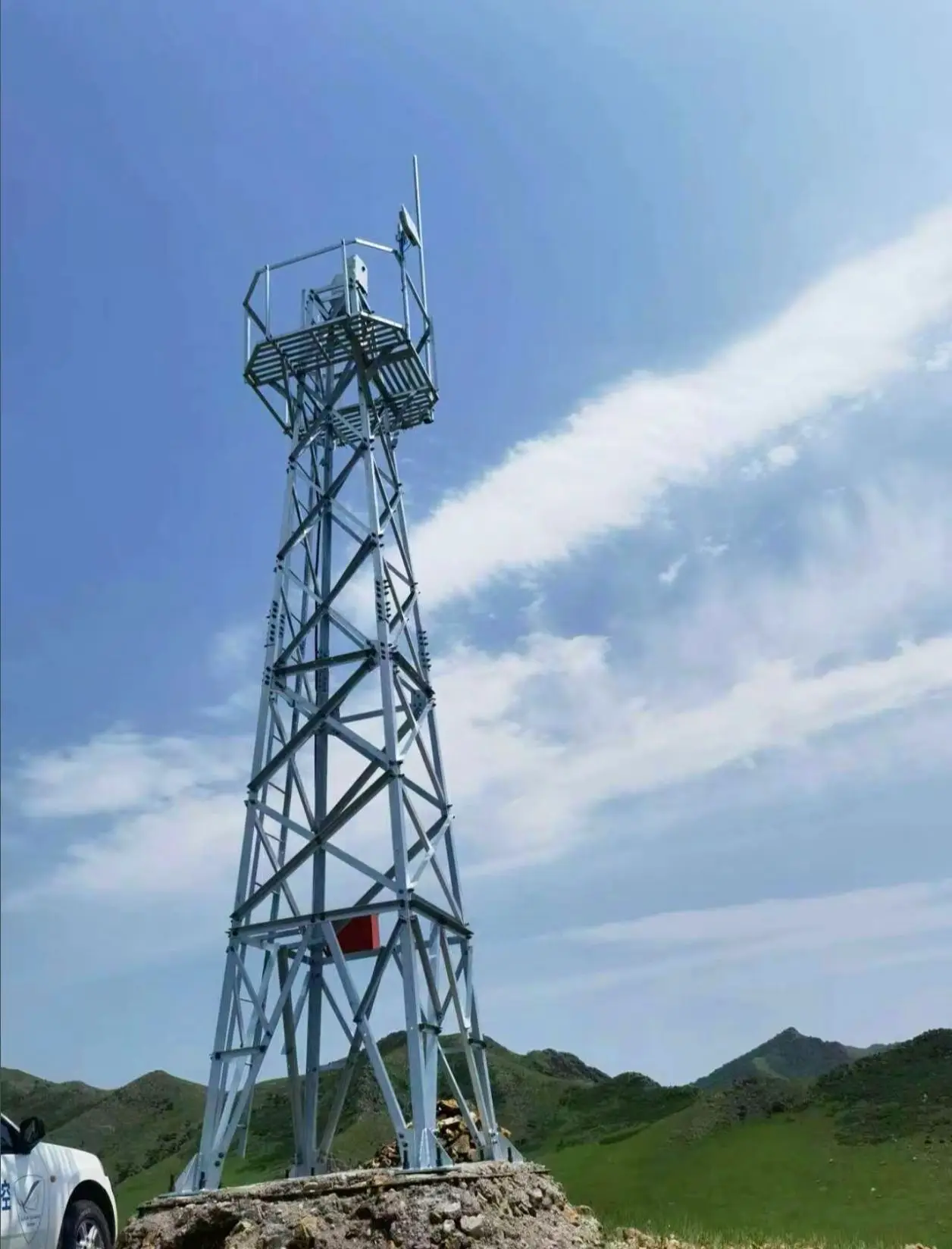

The tower is equipped with a working platform, and video pan-tilt units, HD cameras, searchlights and other equipment are installed at the top, enabling 360-degree dead-angle-free monitoring. Equipped with lightning rod and grounding system, grounding resistance ≤4 ohms. Solar power systems, wireless transmission equipment, etc. can be configured as needed.
| Parameter | Value |
|---|---|

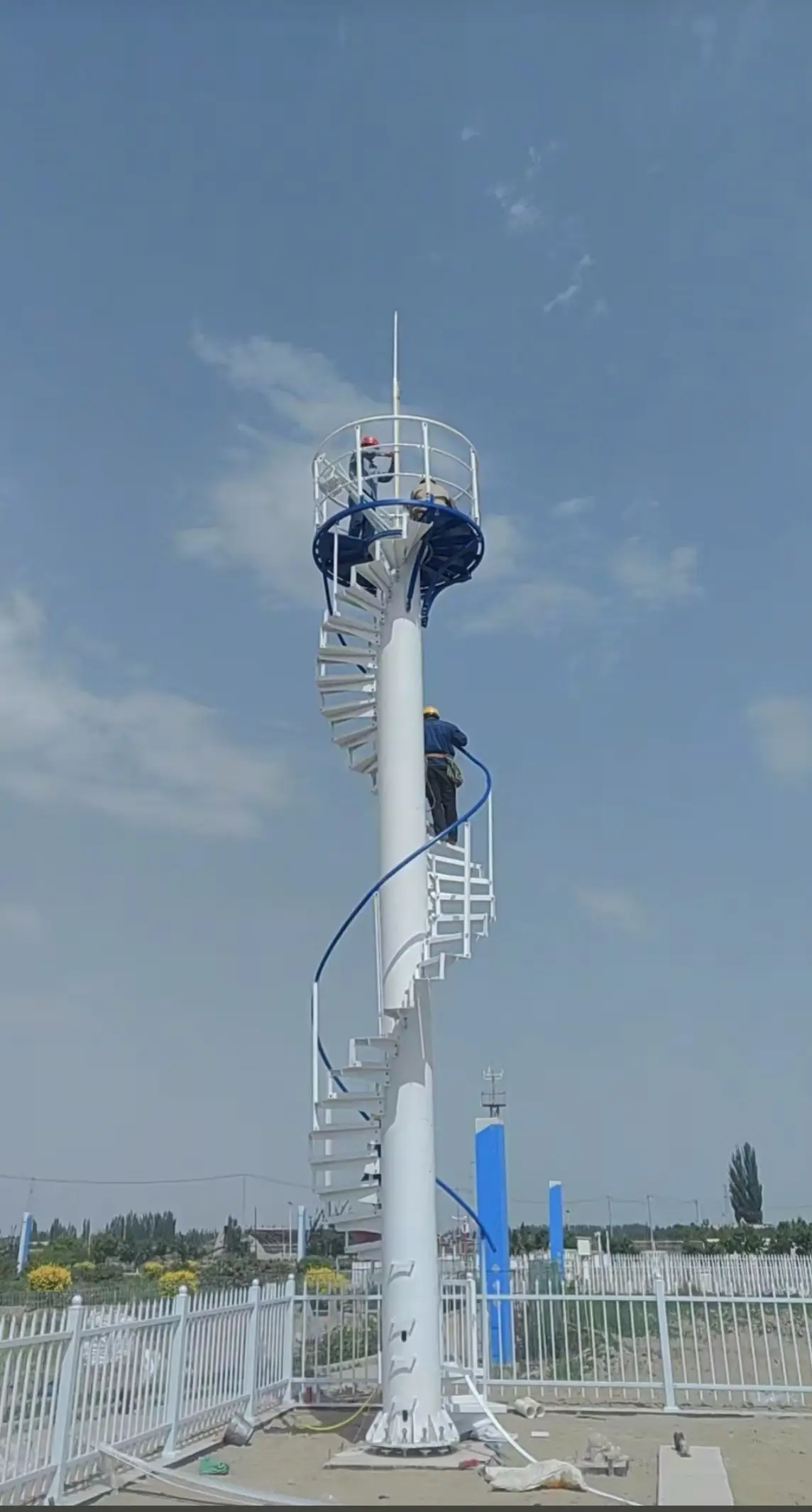

| Structure Type | 4-column angle steel / Triangular round steel / Single pipe |
| Common Heights | 10m, 15m, 20m, 25m, 30m, 35m, 40m (Custom 5-50m) |
| Main Material | Q235B Angle steel / Round steel / Steel pipe |
| Design Wind Speed | 30-40m/s |
| Seismic Rating | Intensity 8 (GB 50011) |
| Ice Coating | 5-10mm |
| Operating Temp | -40℃ ~ +55℃ |
| Vertical Deviation | ≤ 1/1000 |
| Grounding Resistance | ≤ 4Ω |
| Platform Load | ≥ 250kg/㎡ |
| Platform Layers | 1-3 working platforms |
| Ladder Type | External ladder with cage / Internal ladder |
| Anti-corrosion | Hot-dip galvanizing (ISO 1461) |
| Standards | GB 50017, GB/T 51425-2020 |
| Design Life | ≥ 50 years |
