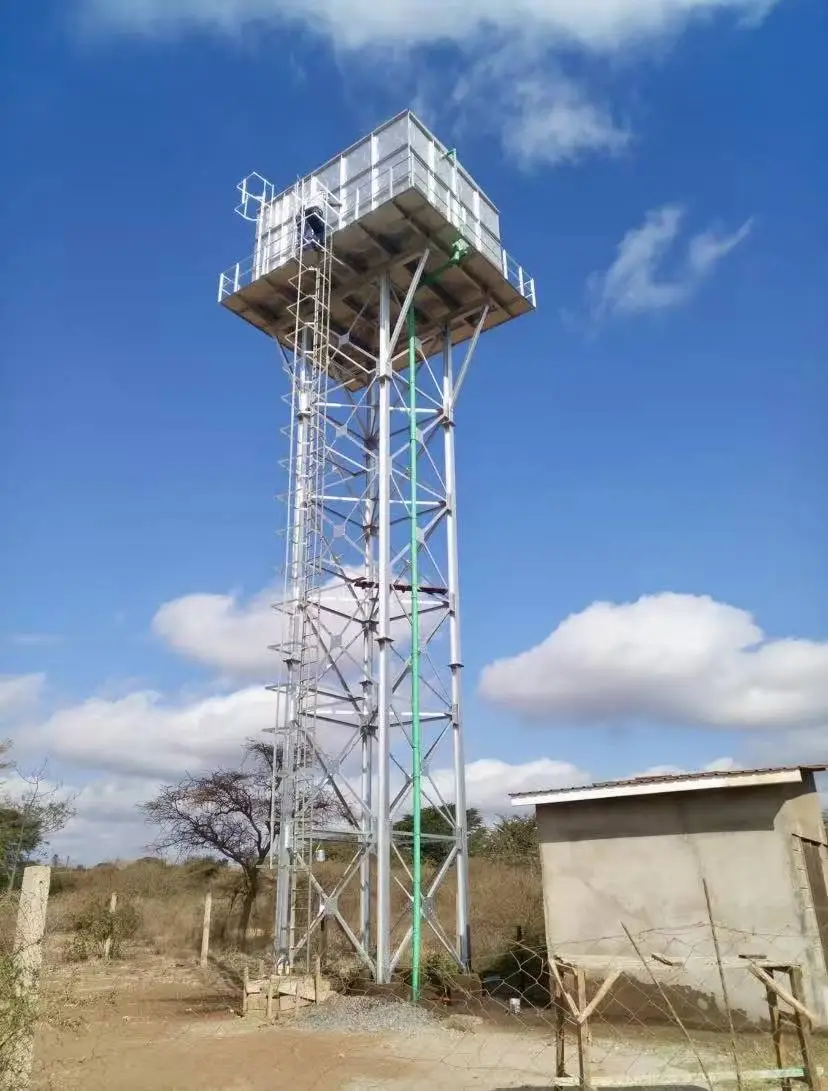

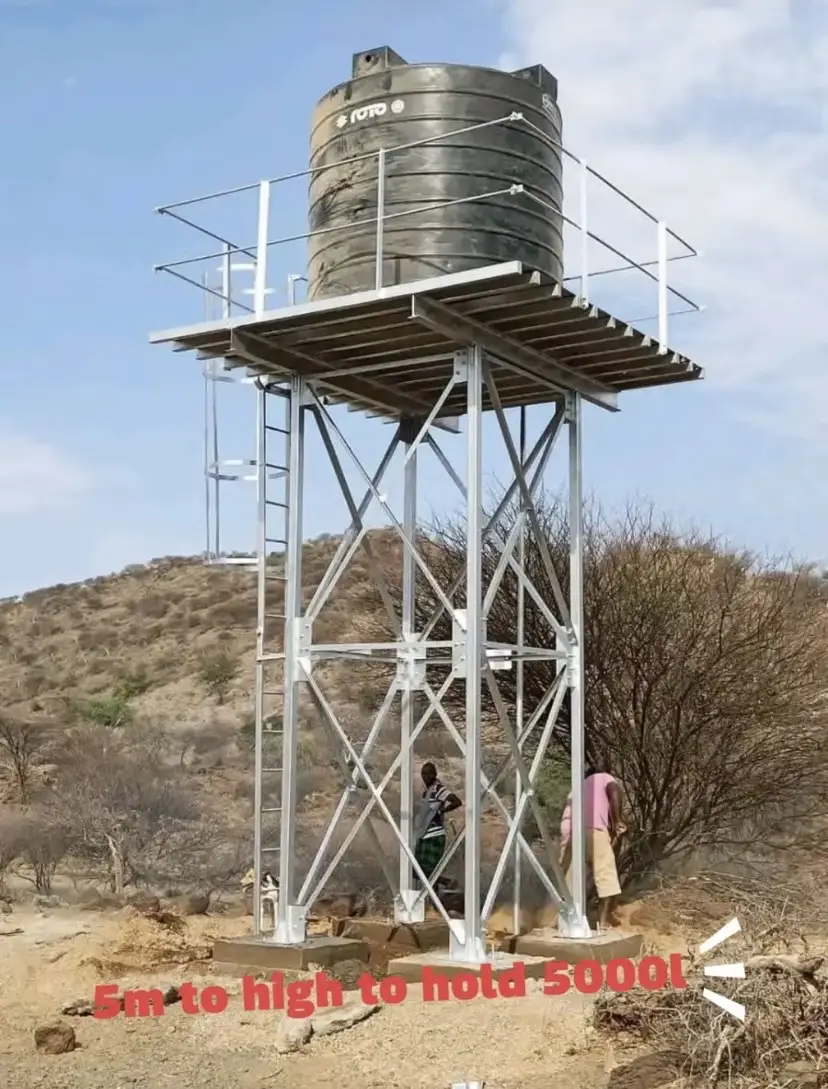

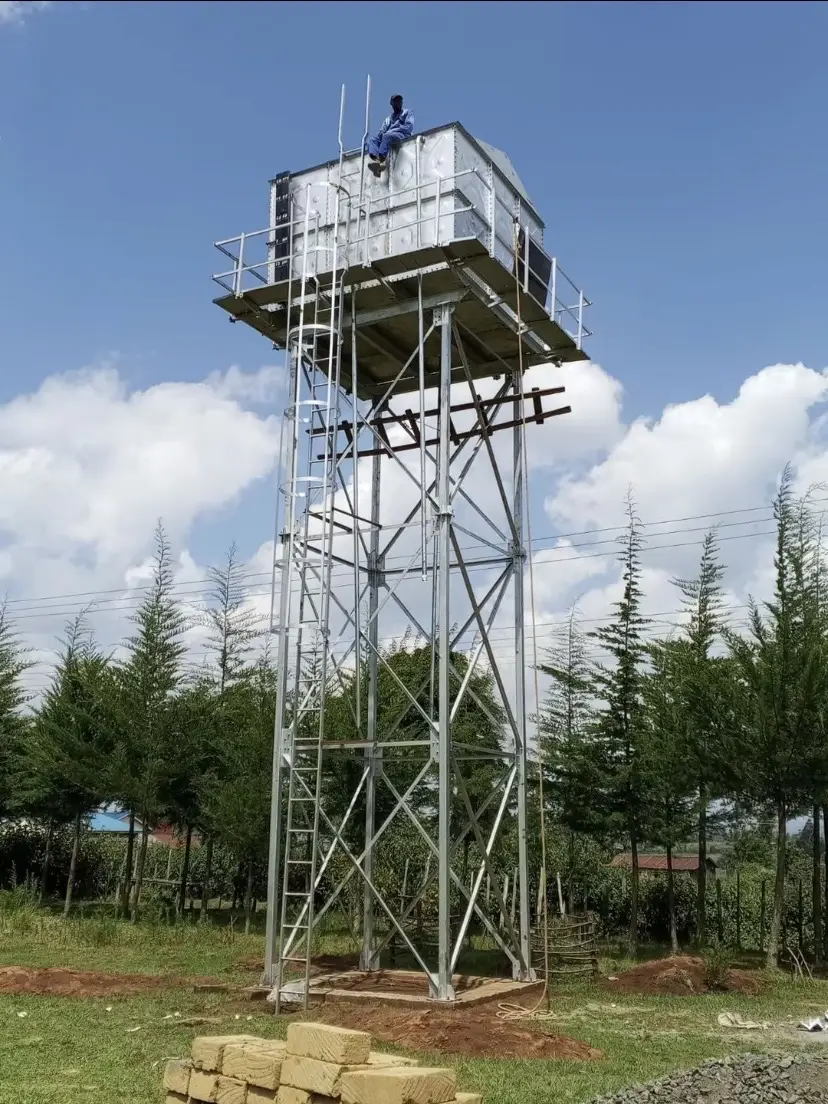

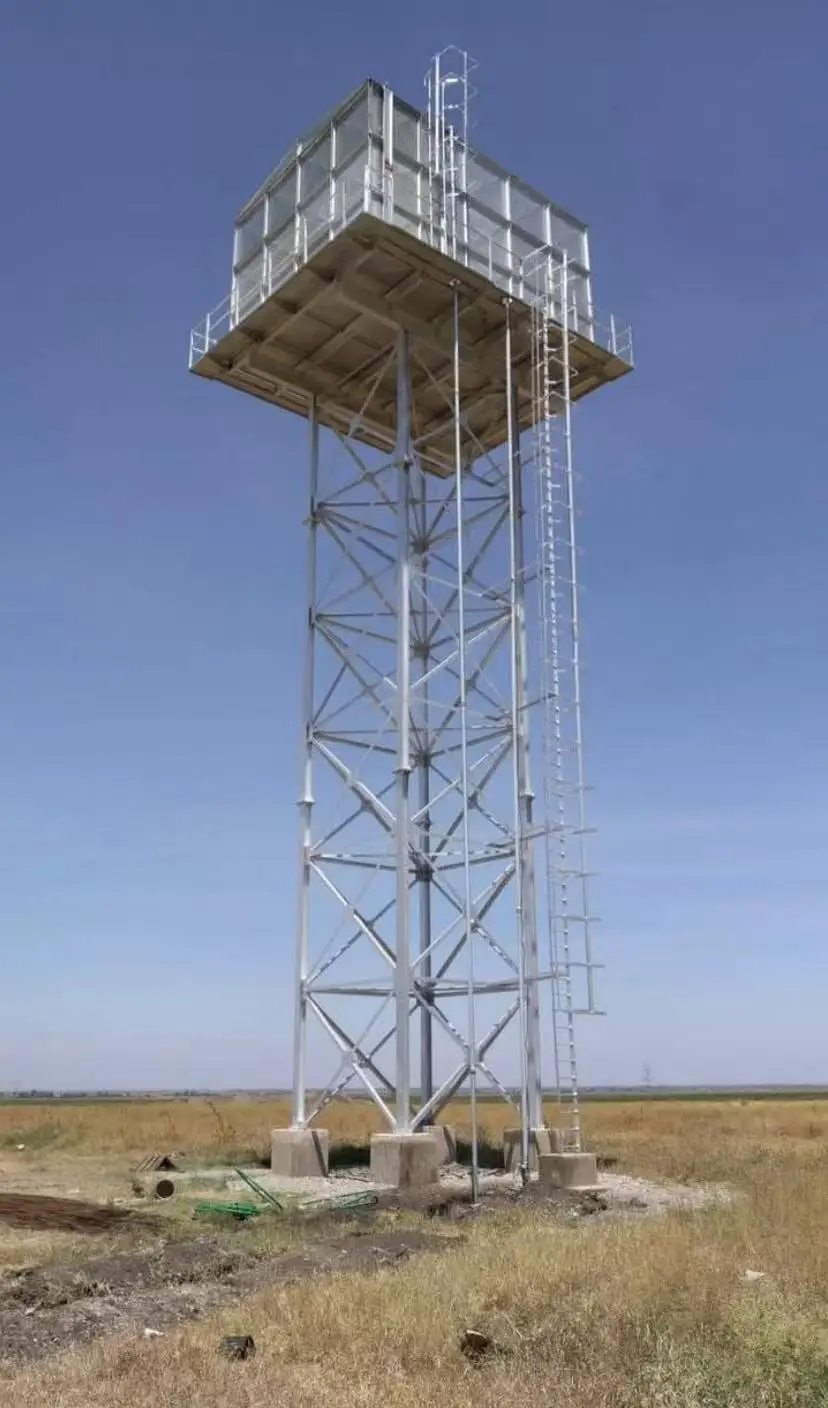

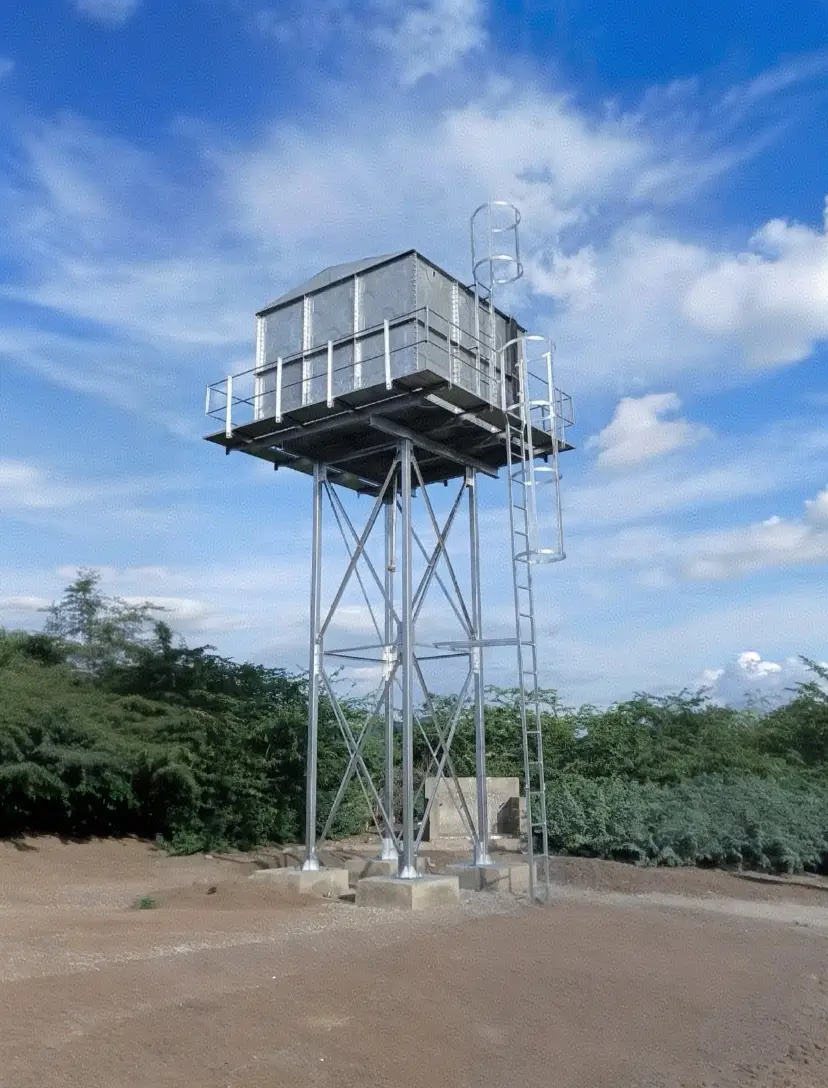

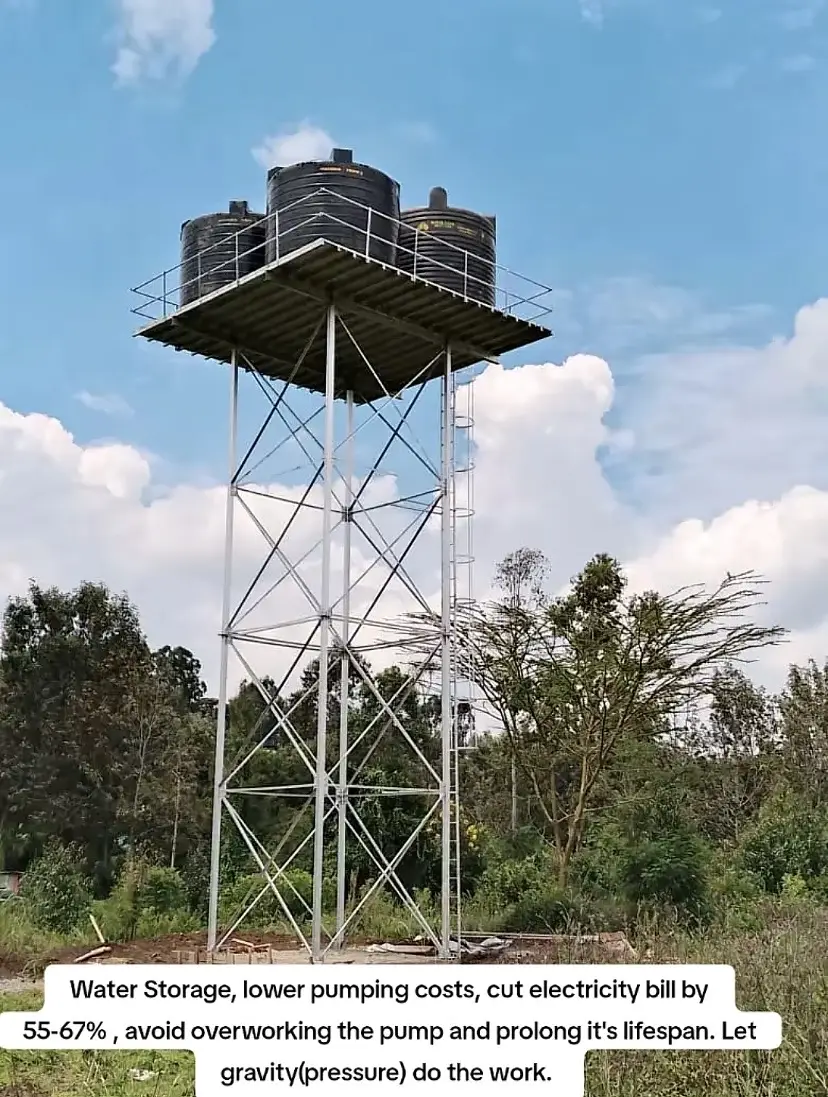

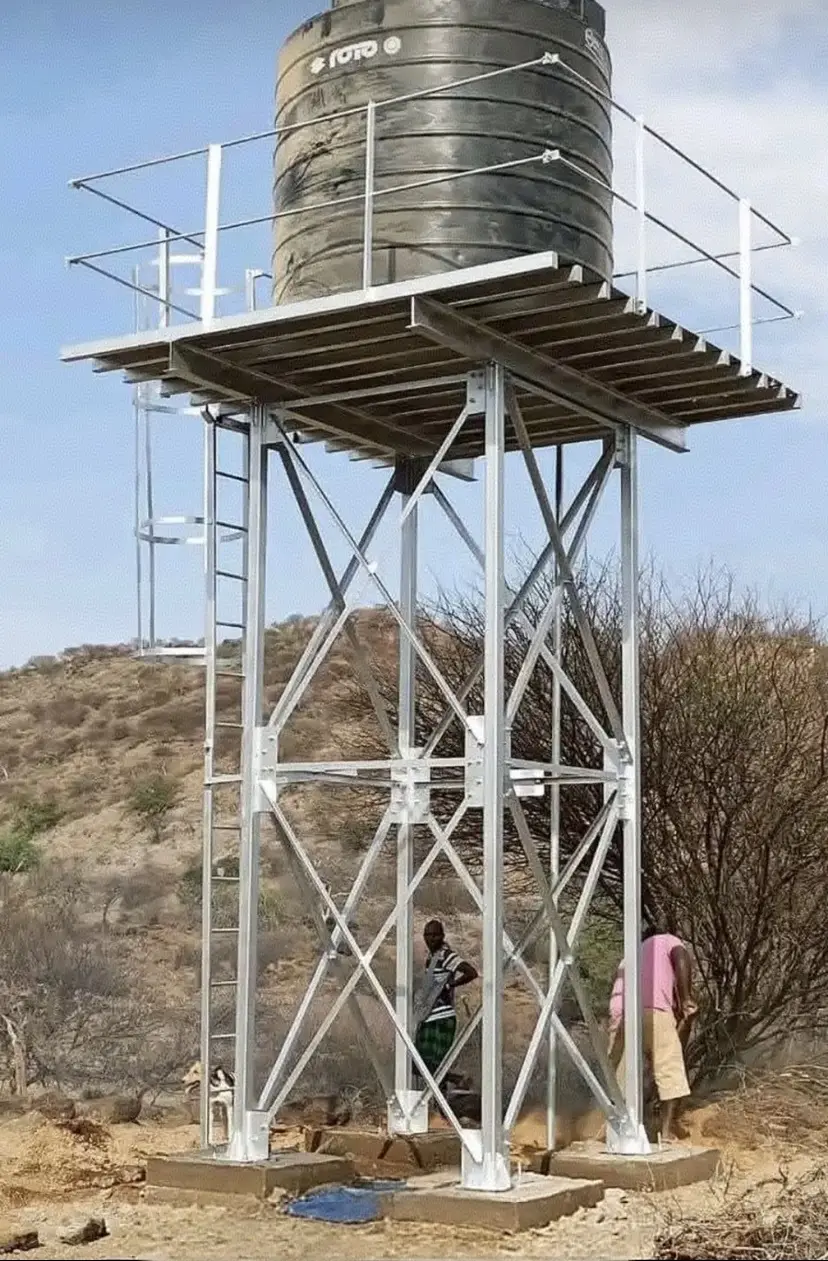

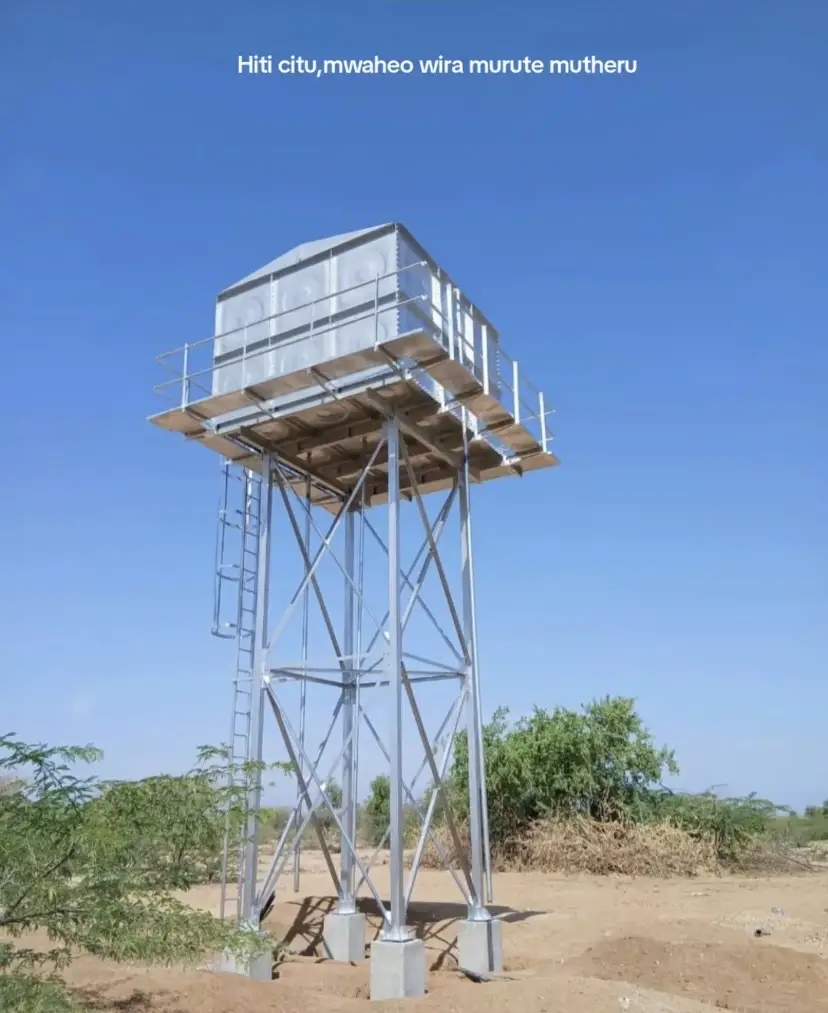

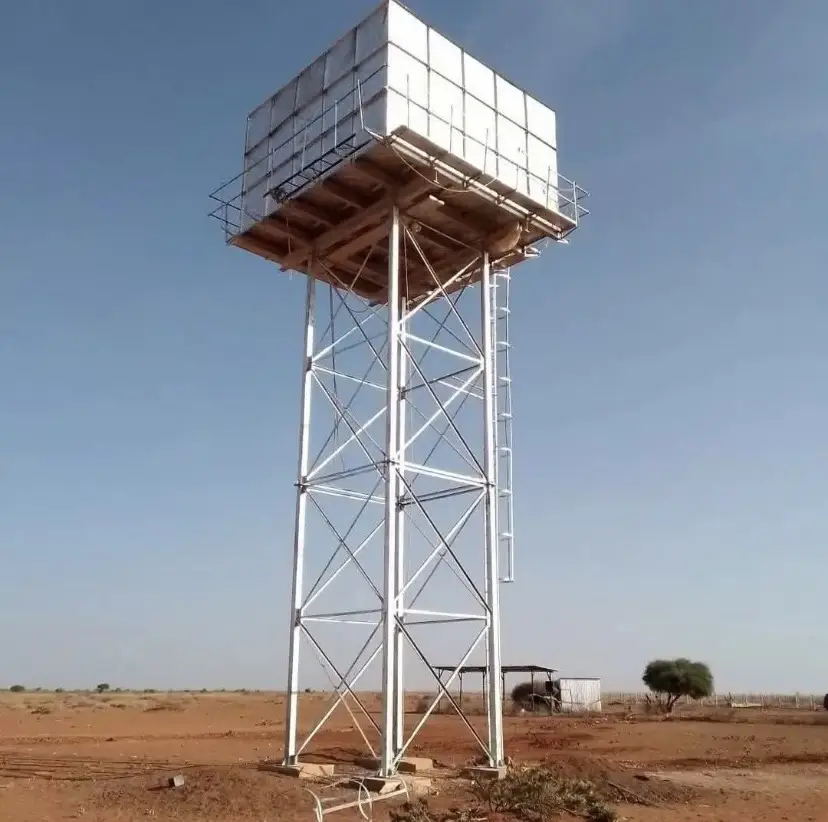

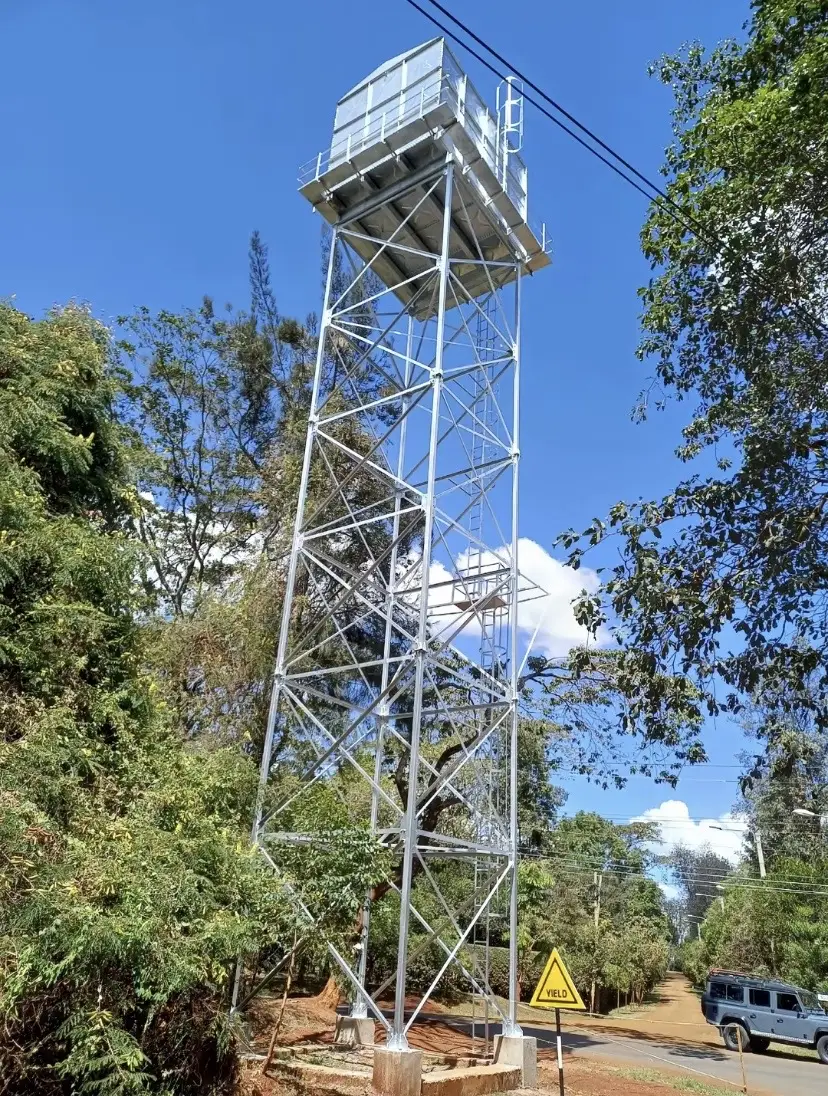

The elevated water tank tower, also known as high-level water tower, is a steel structure that elevates a water storage tank to a height, using gravity to achieve gravity-fed water supply. Mainly used in fire water supply, industrial production water, domestic drinking water storage and other scenarios, ensuring basic water supply even during power outages or pump failures.

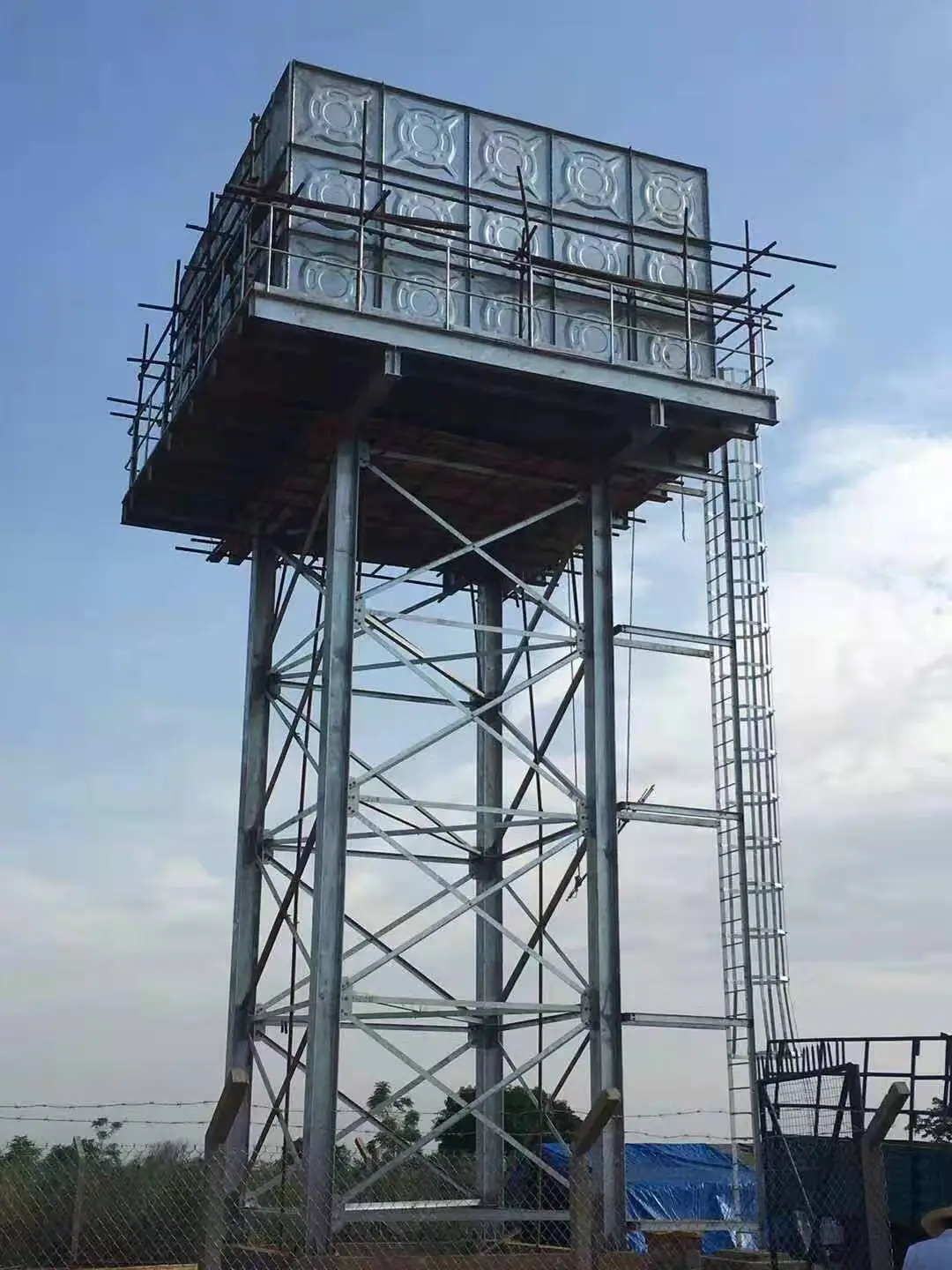

Yutai water tank towers adopt steel structure truss framework, with water tanks made of FRP (SMC/GRP), stainless steel or galvanized steel plate. The tower frame uses Q235B/Q355B section steel, overall hot-dip galvanized anti-corrosion, design service life up to 50+ years. Tank capacity from 1m³ to 1000m³ optional, using modular assembly method, capacity can be adjusted as needed.

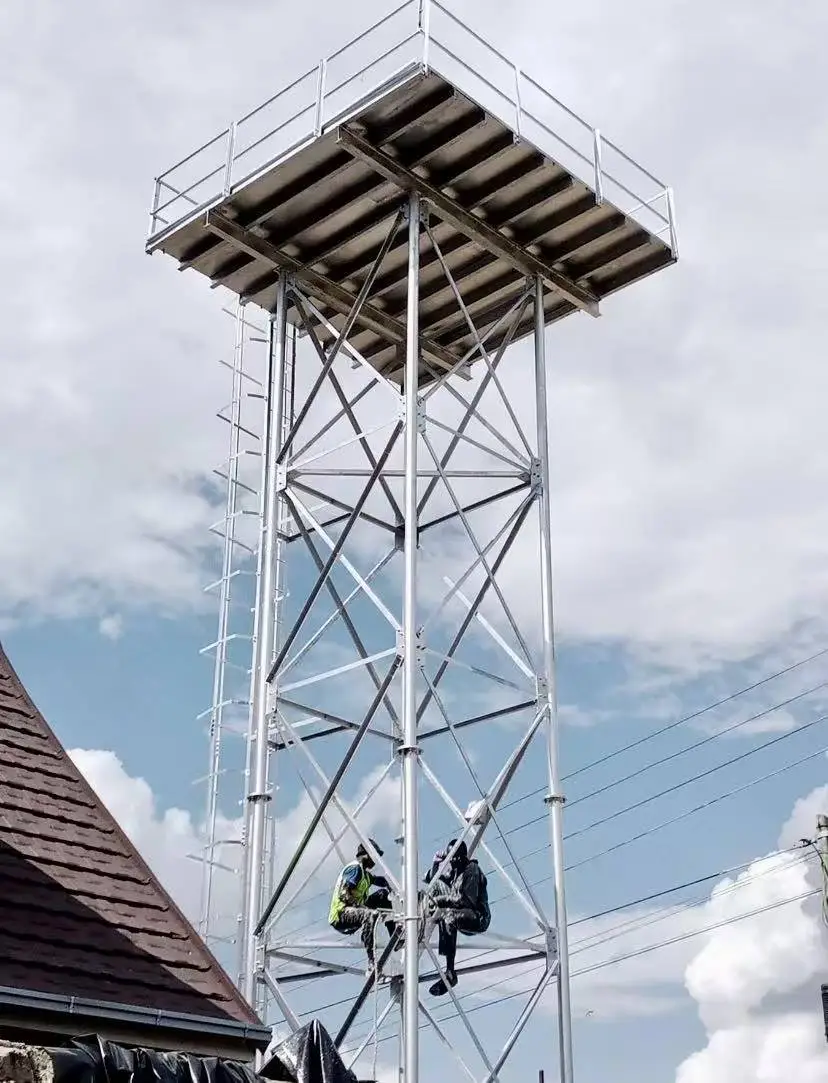

The tower is equipped with integrated staircase and maintenance platform for daily maintenance. Widely used in industrial and mining enterprises, residential communities, schools, hospitals, hotels, fire water supply and other places. Customizable design based on water supply needs, site conditions, wind pressure and seismic parameters, providing full service from design, manufacturing to installation.
| Parameter | Value |
|---|---|
| Tower Structure | 4-column steel truss / Steel support frame |
| Tank Capacity | 1m³ - 1000m³ (Customizable) |
| Tower Material | Q235B / Q355B section steel (H-beam/Angle/Channel) |
| Tank Material | GRP (SMC) / 304 Stainless steel / Galvanized steel |
| Tower Height | 5m, 10m, 15m, 20m, 25m, 30m (Customizable) |
| Design Wind Speed | 30-50m/s |
| Seismic Rating | Intensity 8 |
| Tank Thickness | 4-16mm (GRP) / 2-8mm (Stainless) |
| Water Quality | Complies with GB 5749 drinking water standard |
| Tank Color | White / Blue / Grey / Red (Customizable) |
| Access | Staircase + Top maintenance platform |
| Anti-corrosion | Tower hot-dip galvanized + anti-corrosion topcoat |
| Temperature Range | -30℃ ~ +70℃ |
| Design Life | ≥ 50 years |
