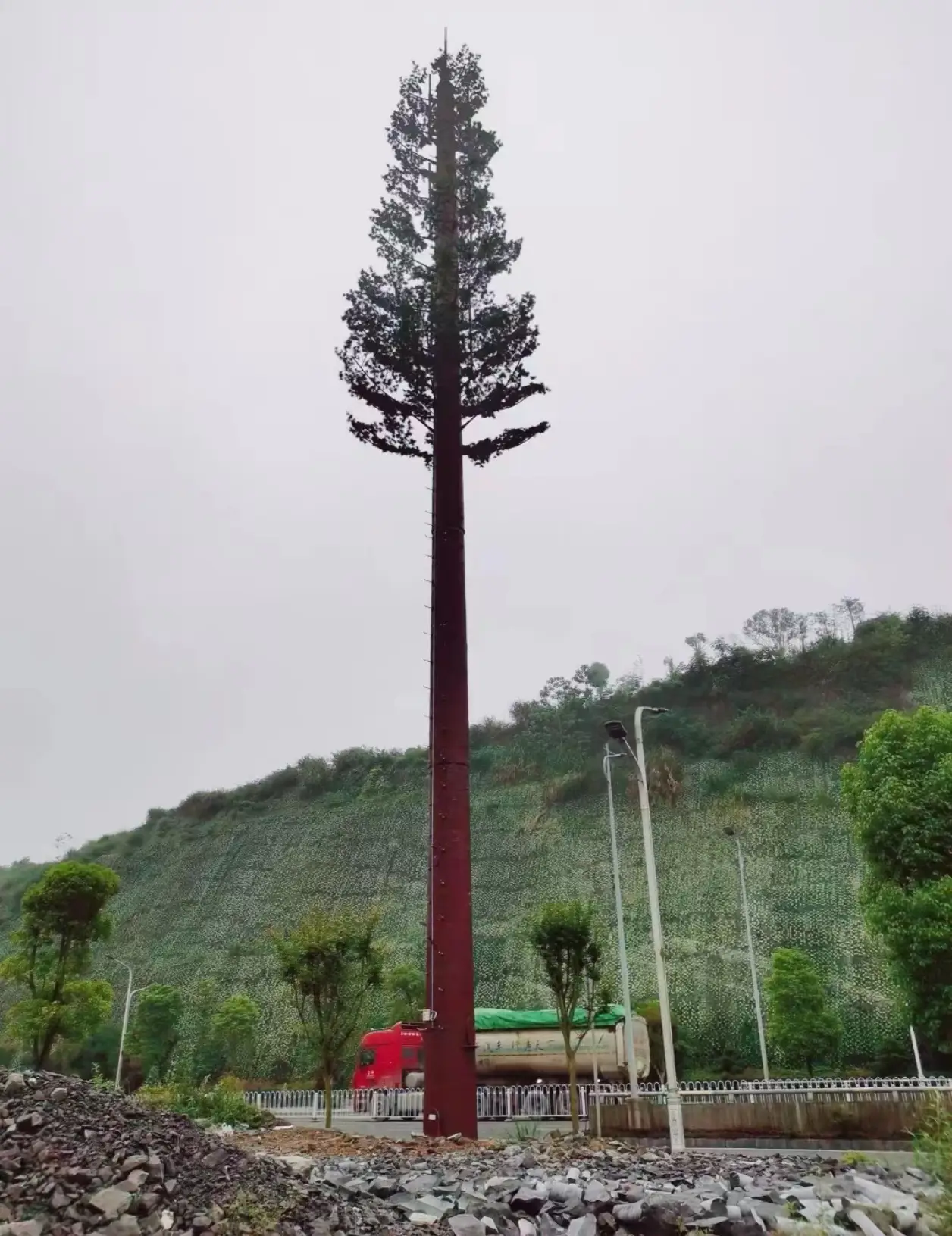

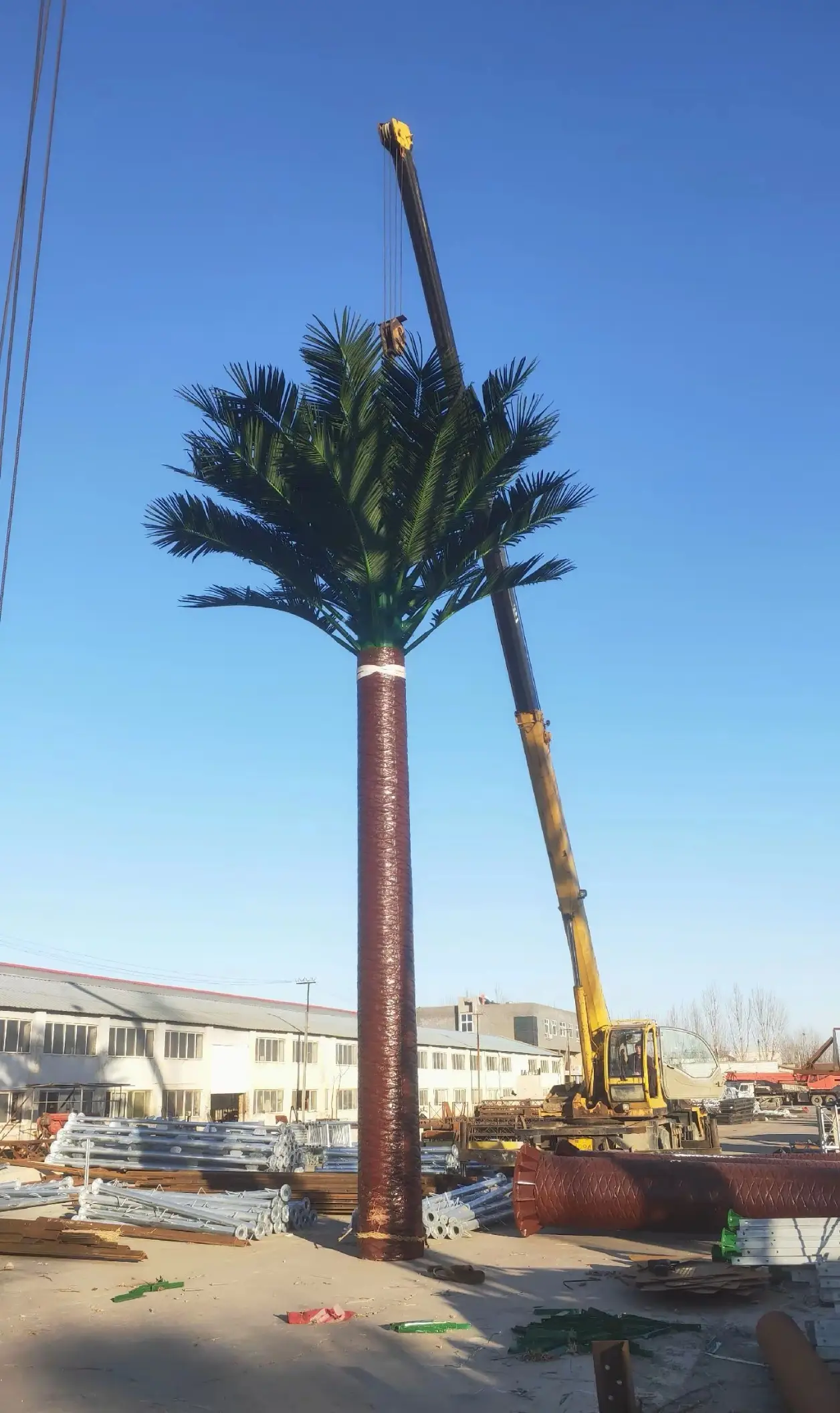

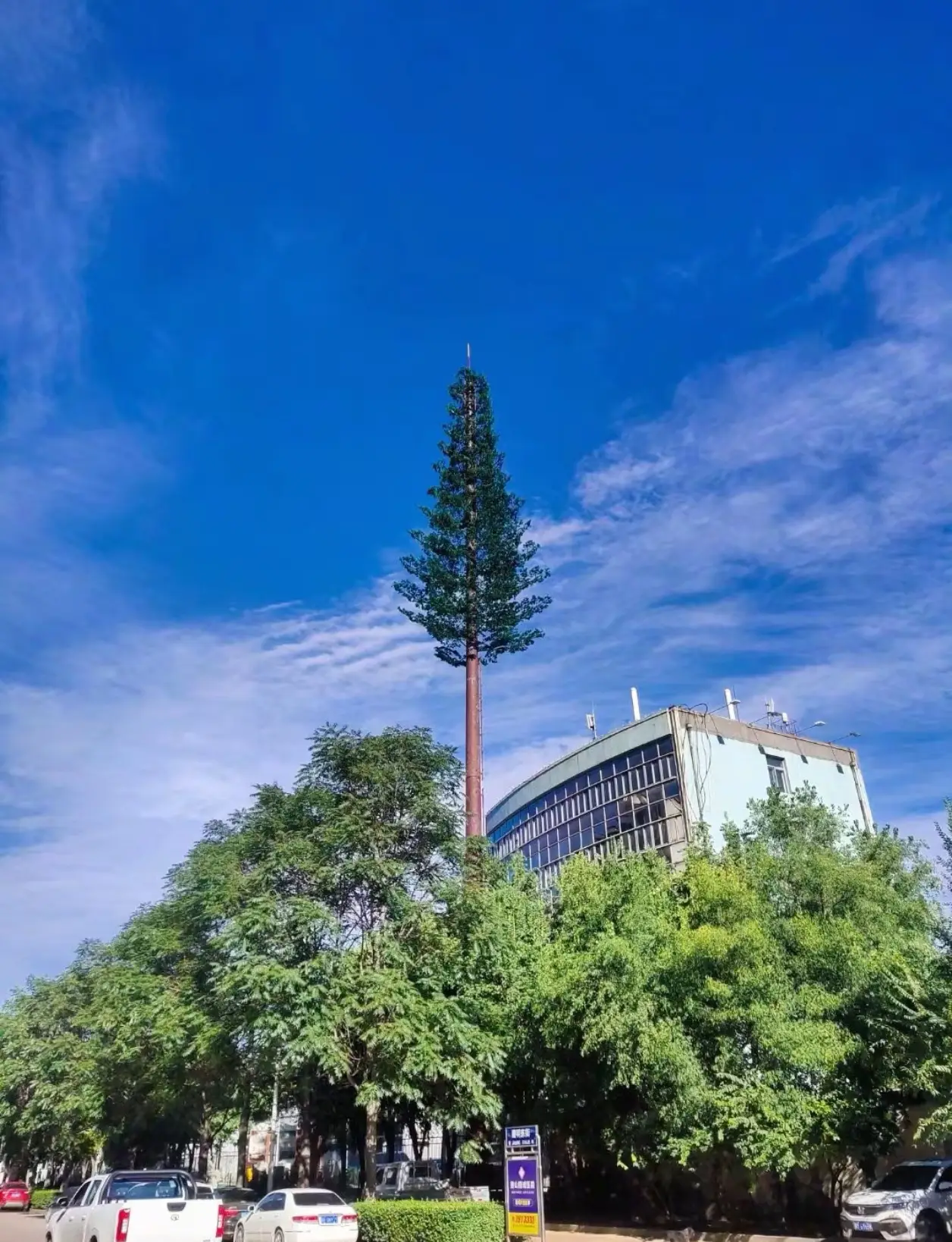

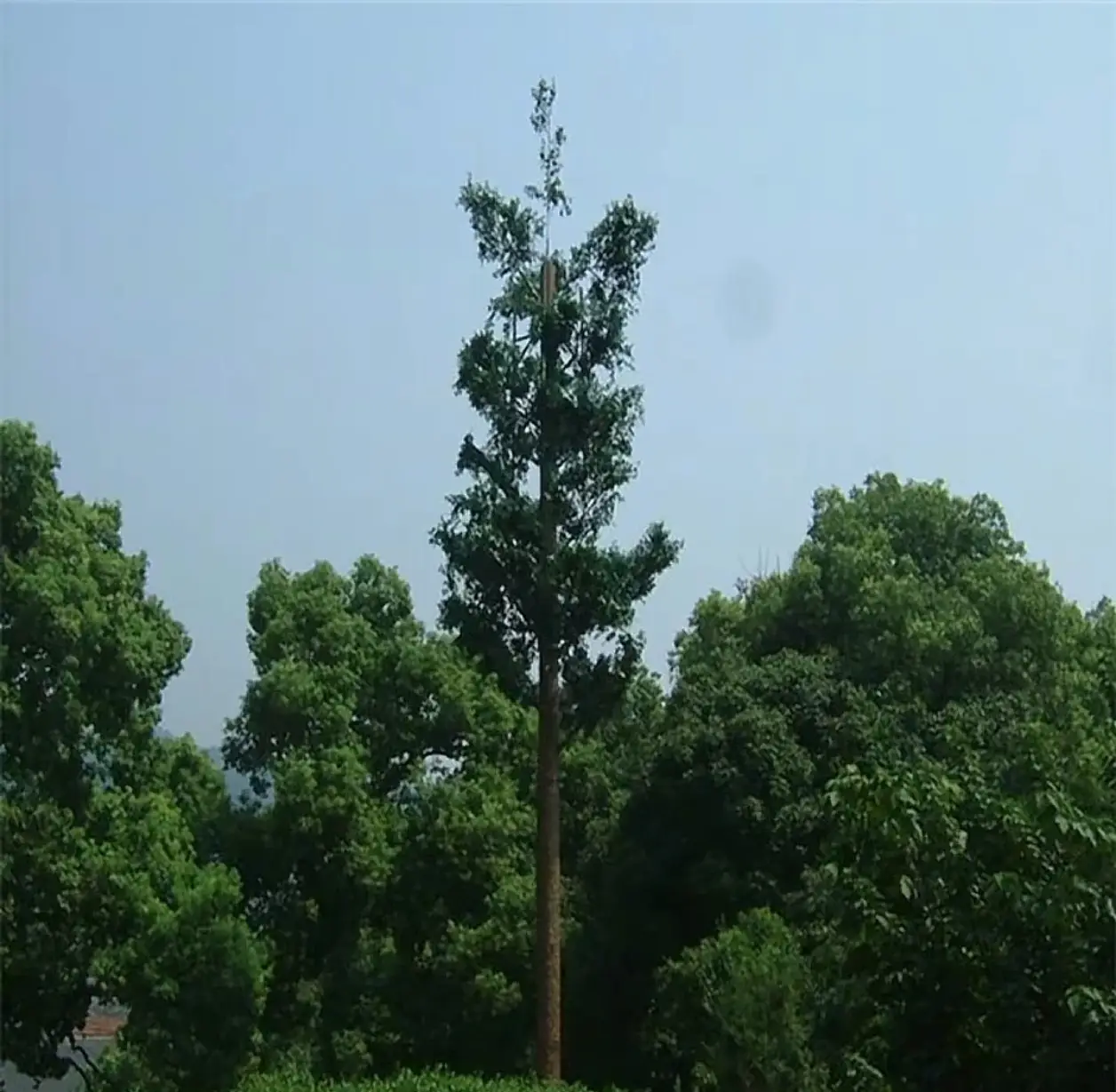

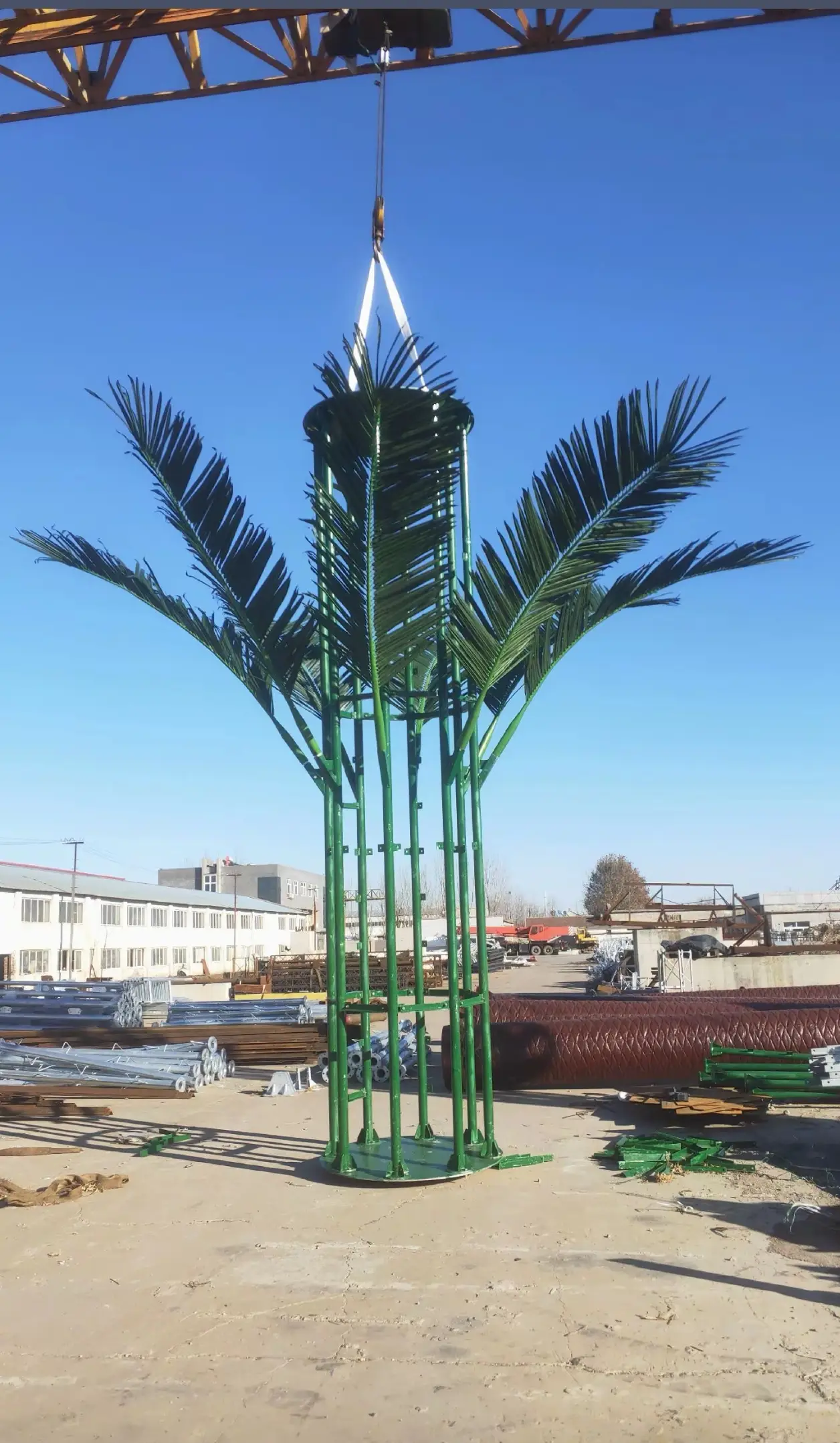

The bionic tree tower is a landscape communication base station disguising steel towers as artificial trees. Through bionic design, the tower perfectly integrates with the surrounding natural environment, solving the difficulty of building stations in sensitive areas such as scenic spots and high-end residential communities.

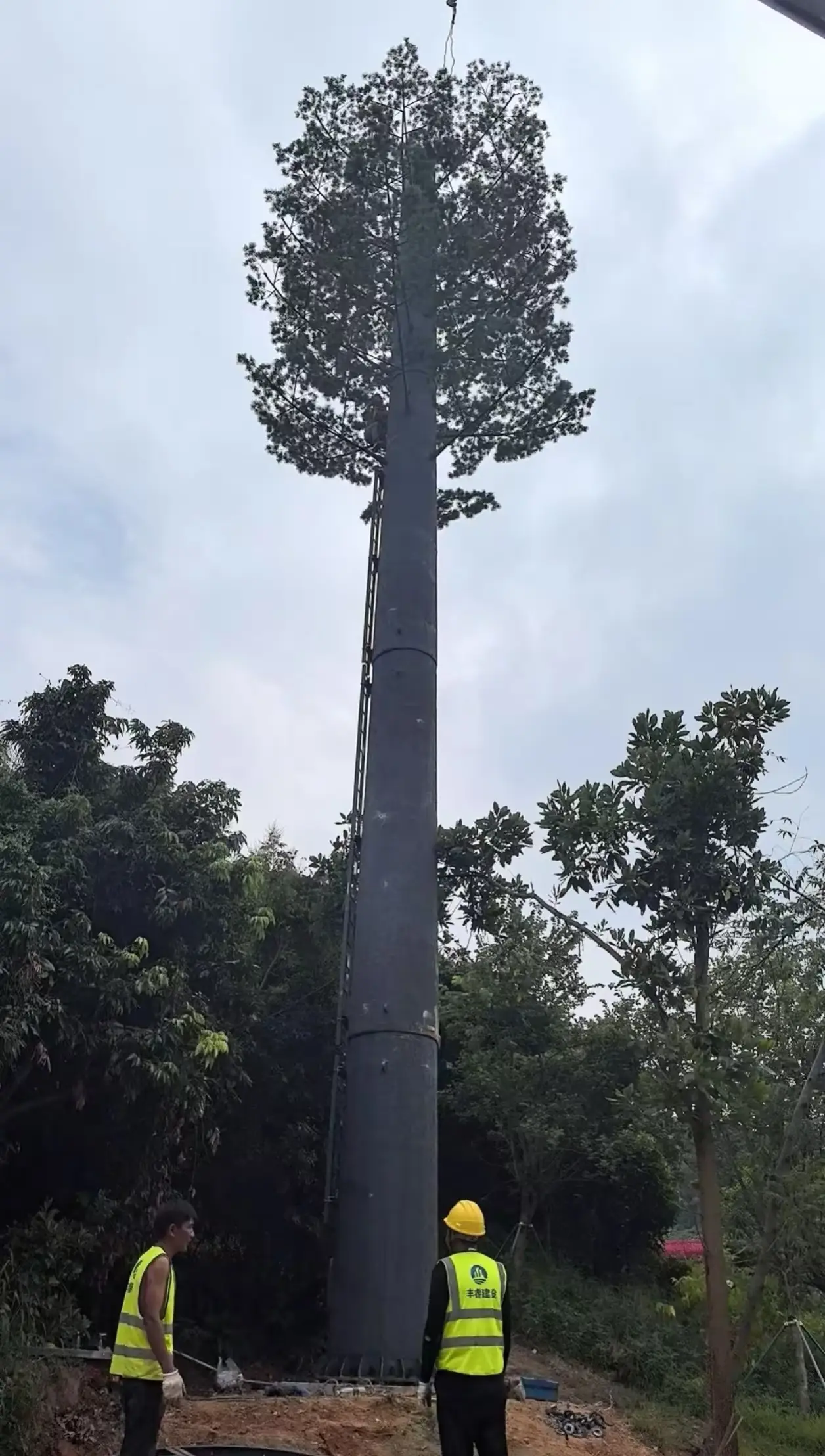

Yutai bionic tree towers adopt a double-layer structure with inner load-bearing steel structure and outer bionic decorative layer. The main tower core uses Q235B/Q355B tapered steel pipe, wrapped externally with epoxy resin and FRP composite material, with texture replicating real tree trunks.

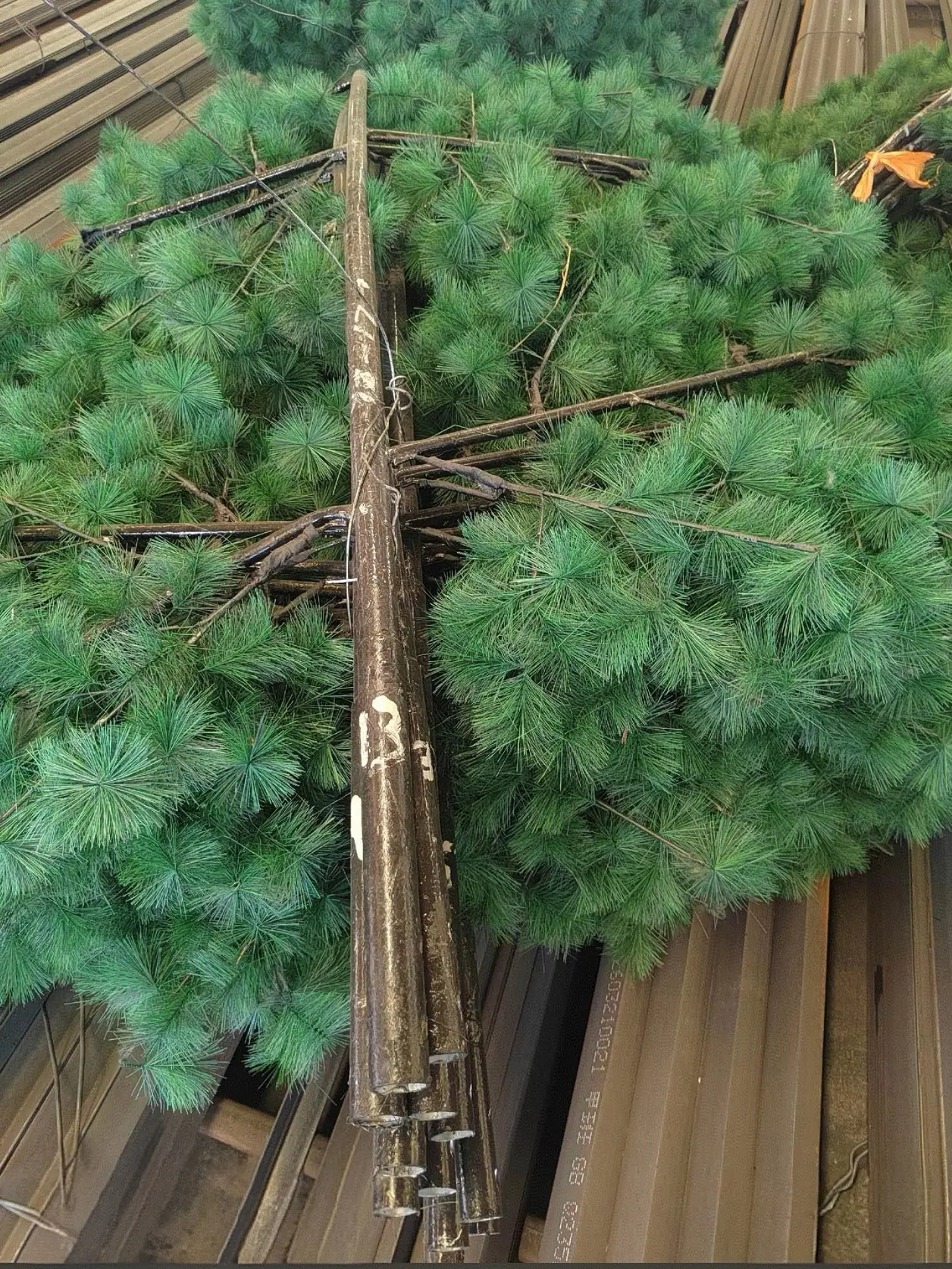

The product uses pine trees, camphor trees, coconut trees, etc. as simulation models, achieving high simulation. RF signal attenuation of artificial leaves is less than 1dB, barely affecting antenna performance. 5 years no fading, 10 years no cracking or peeling, with recoatability, design life over 50 years.
| Parameter | Value |
|---|---|
| Structure | Dual-layer: inner steel core + outer bionic decoration |
| Common Heights | 15m, 20m, 25m, 30m, 35m, 40m (Customizable) |
| Core Material | Q235B / Q355B tapered steel pipe |
| Bionic Material | Epoxy resin + FRP composite + polymer fiber |
| Bark Thickness | Approx. 15-20mm |
| Tree Types | Pine / Camphor / Coconut / Ginkgo (Customizable) |
| Design Wind Speed | 30-45m/s |
| Seismic Rating | Intensity 8 |
| UV Resistance | 5 years no fading, 10 years no cracking |
| RF Attenuation | Leaf RF signal attenuation ＜ 1dB |
| Operating Temp | -35℃ ~ +55℃ |
| Anti-corrosion | Steel core hot-dip galvanized + bionic coating |
| Design Life | ≥ 50 years |
